Product Description

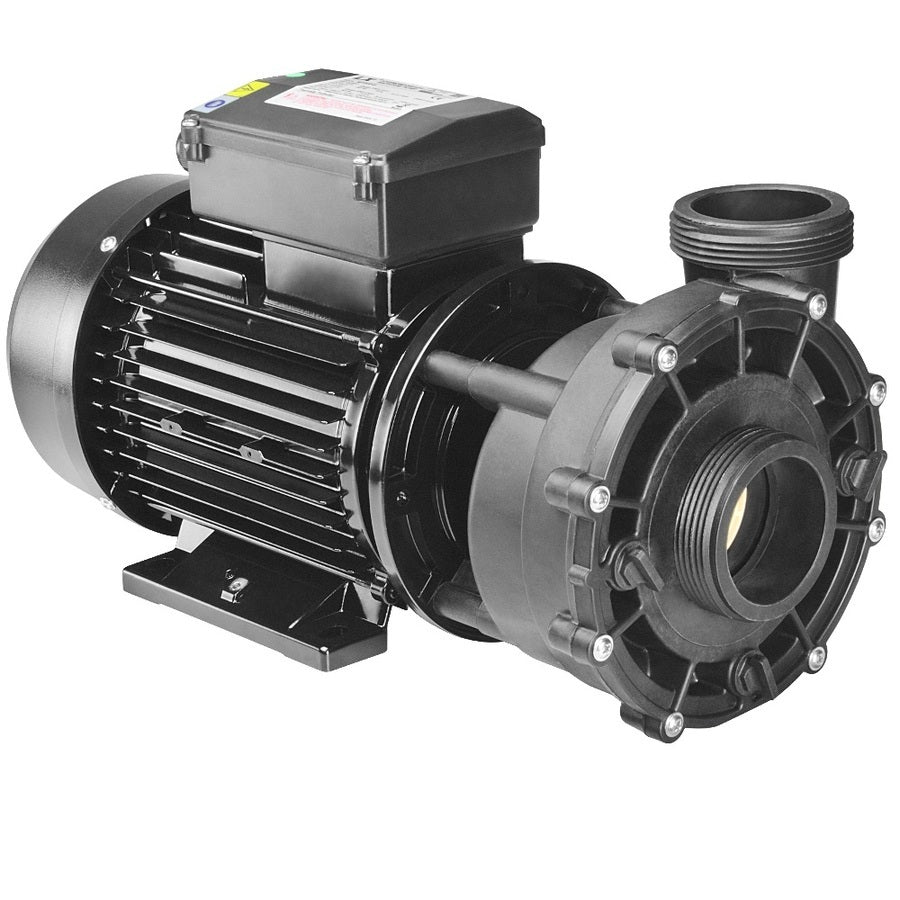

The WP200‑2 Massage Pump 2HP – 2 Speed (50Hz) is a powerful and reliable spa pump designed to deliver strong water flow and effective massage performance for spas and hot tubs. Featuring a 2 horsepower motor and dual‑speed operation, this pump allows for both high‑power massage action and lower‑speed circulation, improving comfort, efficiency, and energy management.
Operating on 50Hz power, the WP200‑2 is suitable for Australian and international spa systems using compatible electrical standards. Built for durability and consistent performance, it is ideal as a replacement or upgrade pump for residential and commercial spa applications.
This pump is engineered to provide smooth, quiet operation while maintaining dependable water movement for jets and hydrotherapy functions.
Specs:
- Model: WP200‑2 (also known as WP200‑II)
- Type: Spa / Hot Tub Massage Pump
- Manufacturer: LX Whirlpool
- Operation: Two‑Speed (Low / High)
- Frequency: 50 Hz
- Application: Spa circulation (low speed) & massage jets (high speed)
Electrical Specifications
- Voltage: 220–240 V AC
- Frequency: 50 Hz
- Phase: Single‑phase
- Motor Frame: 56 Frame
- Capacitor: 30 µF
- Thermal Protection: Built‑in thermal overload protector
-
Power Ratings
Speed Power Current Low Speed 0.35 kW (≈0.37 HP) ~2.0–2.4 A High Speed 1.5 kW (2.0 HP) ~7.0 A
-
Plumbing Connections
- Inlet: 2″ male thread
- Outlet: 2″ male thread
- Thread Outside Diameter: ~78–79 mm

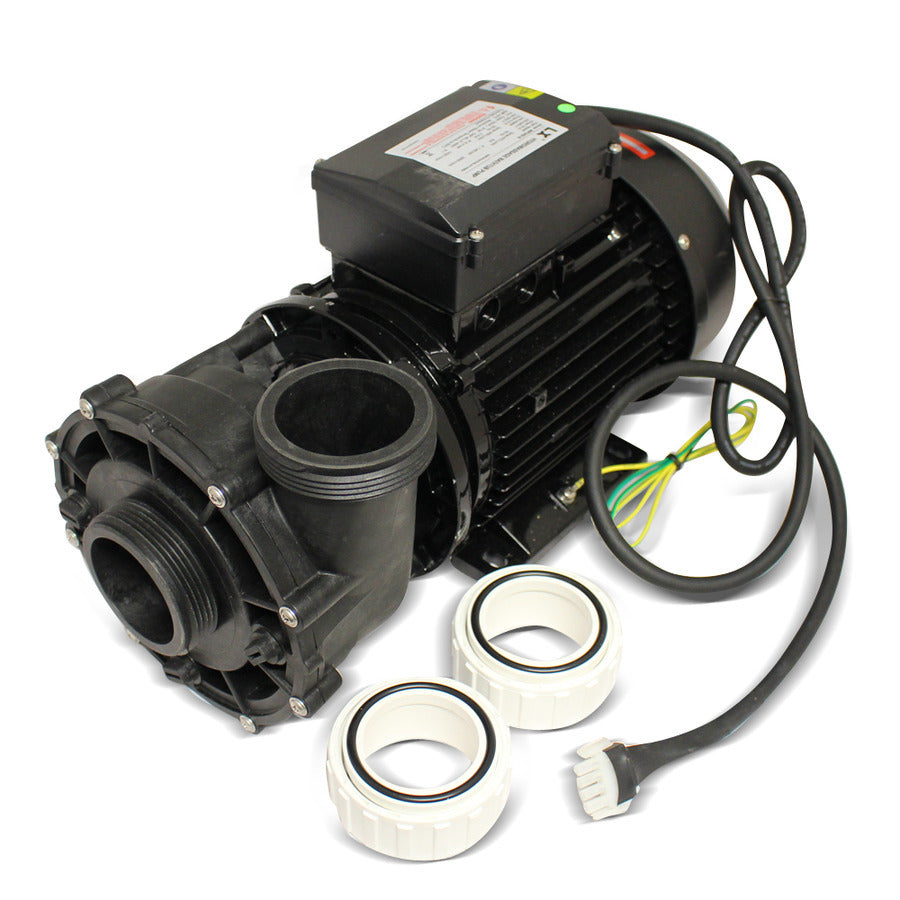

- Unions: Supplied (to suit 2″ / 60 mm pipe)
- Wet End: Rotatable (left, right, up positions)
