Product Description

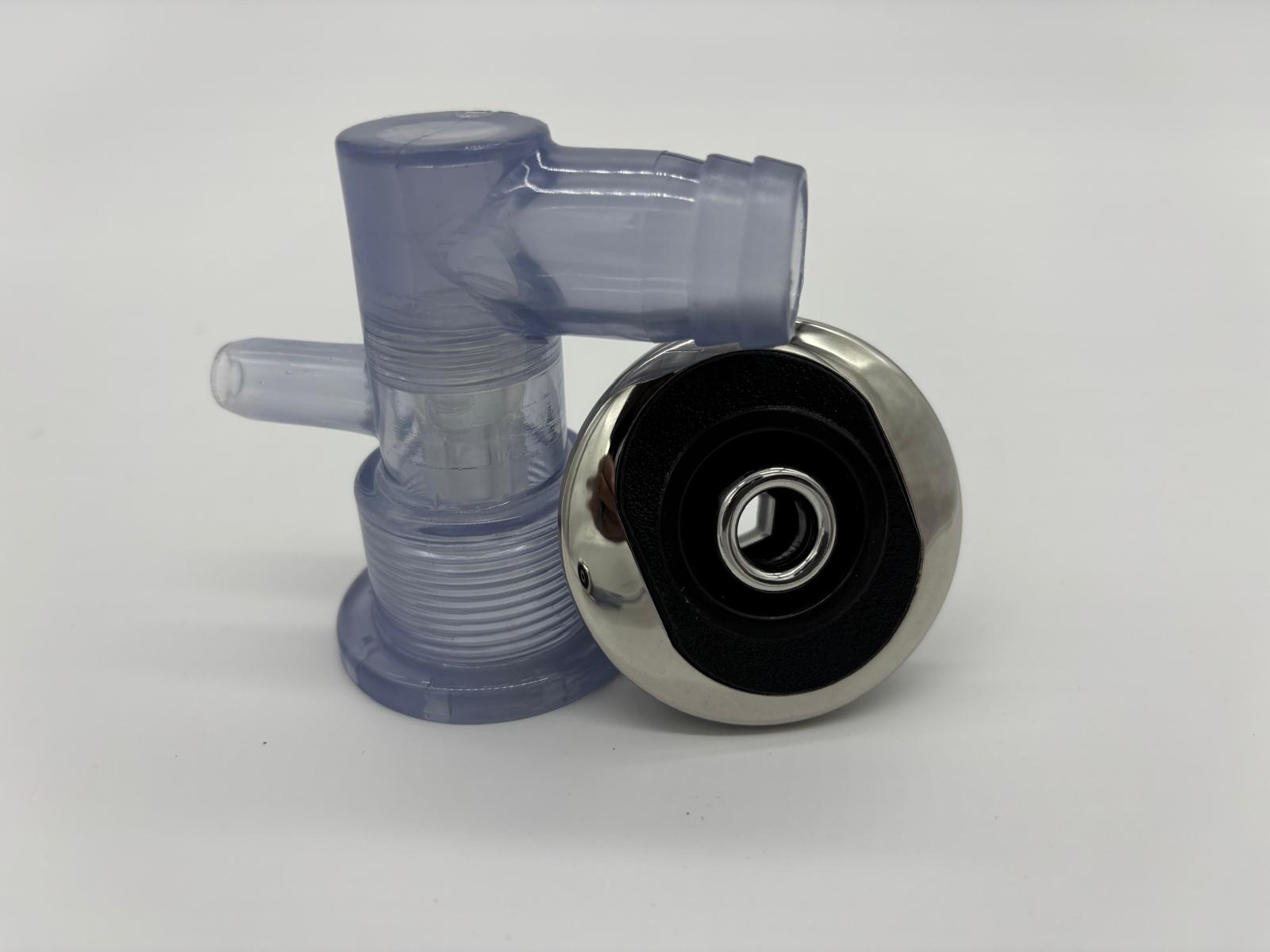

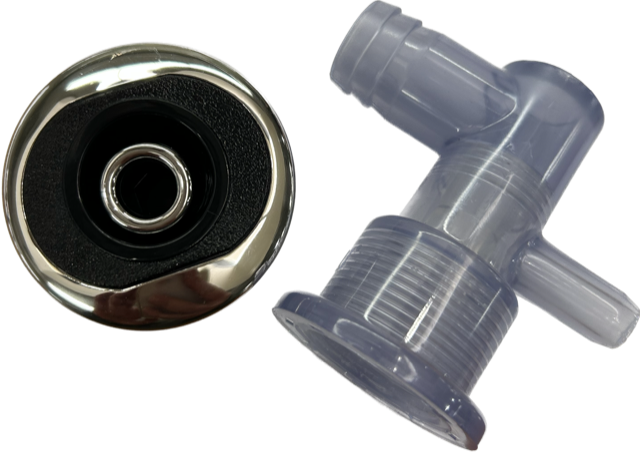

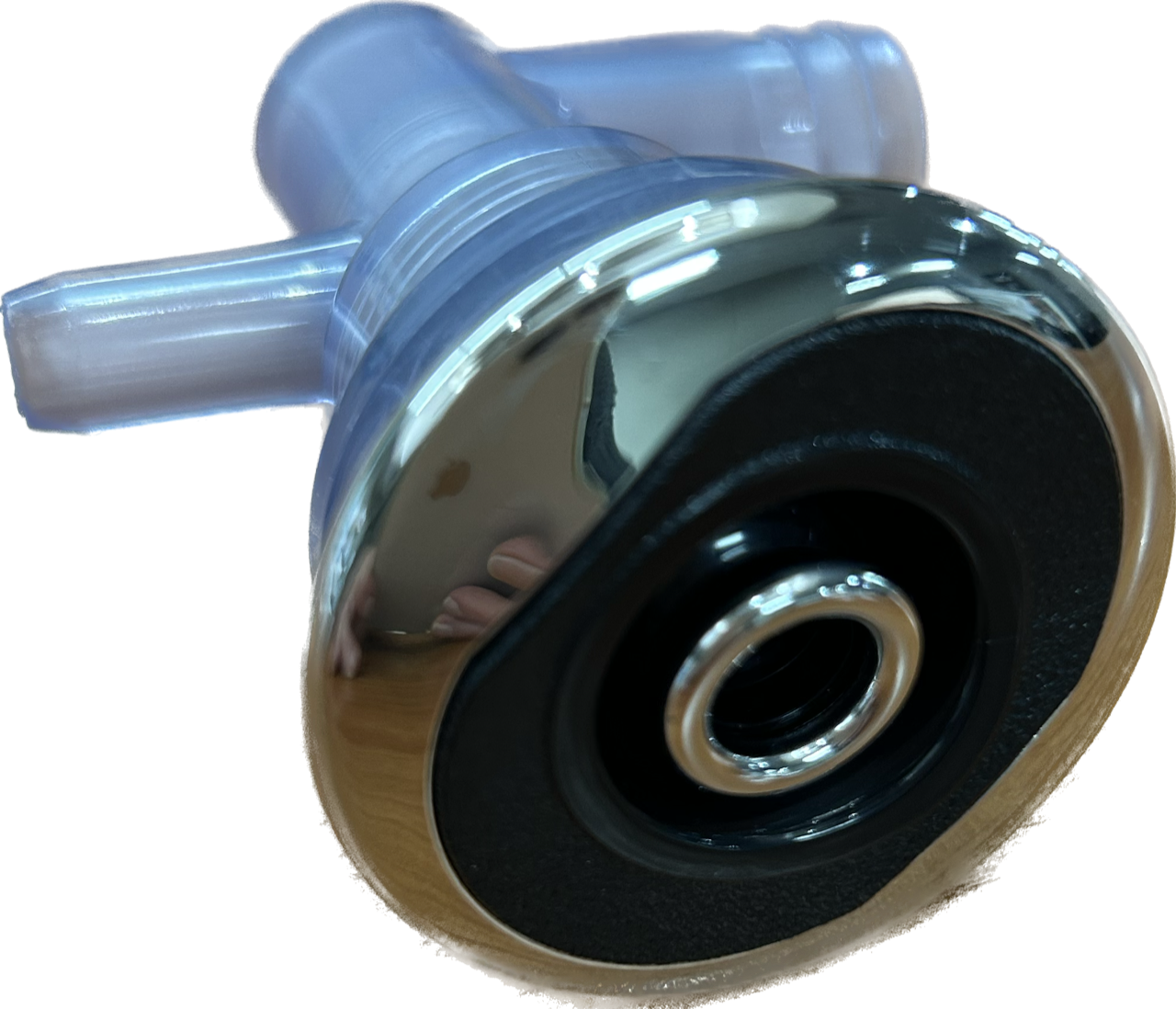

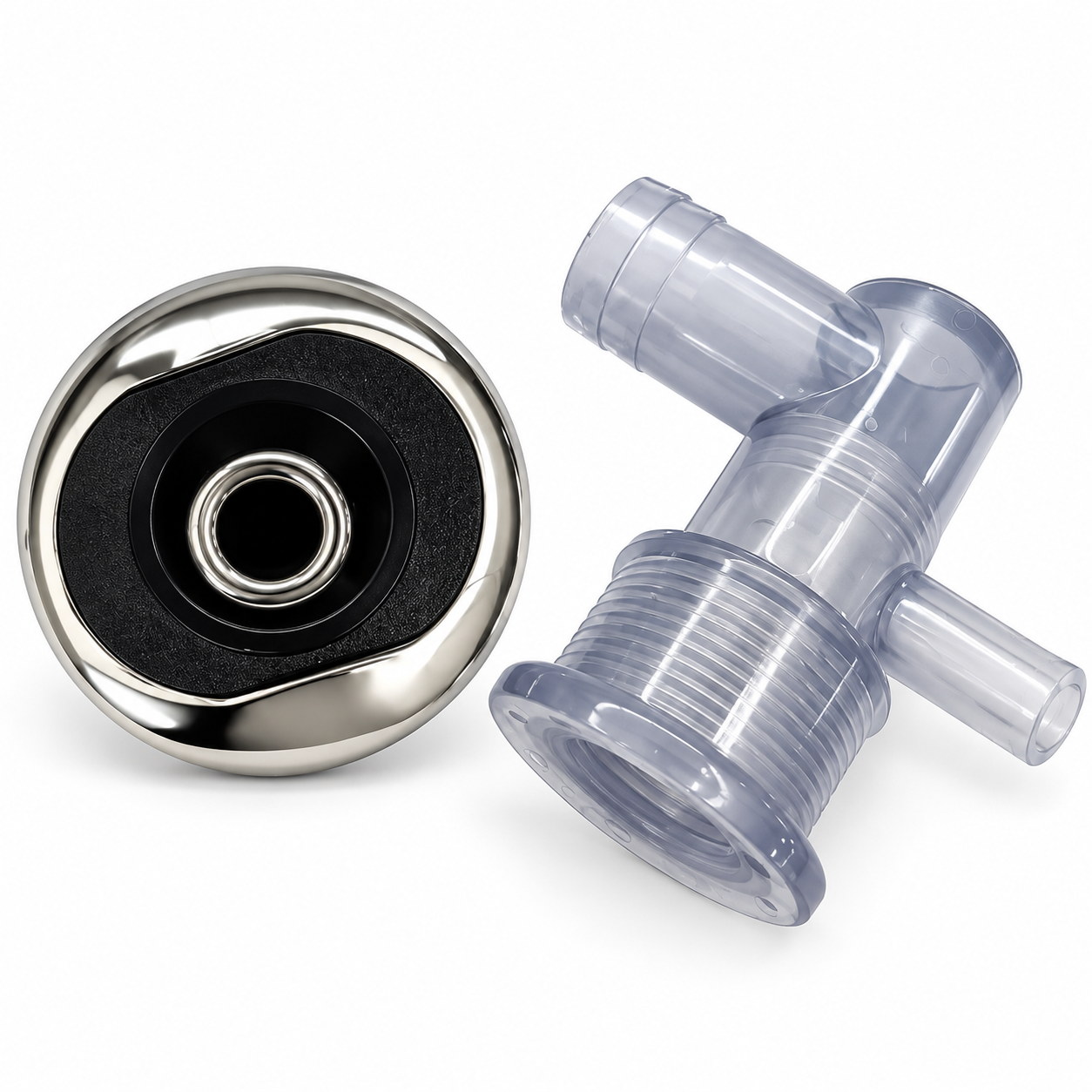

This 2" Duo Catalina Spa Jet – Black & Chrome is a genuine Catalina‑imported jet assembly, supplied complete with jet body, and designed for reliable performance in Catalina X539 and X529 swim spas.

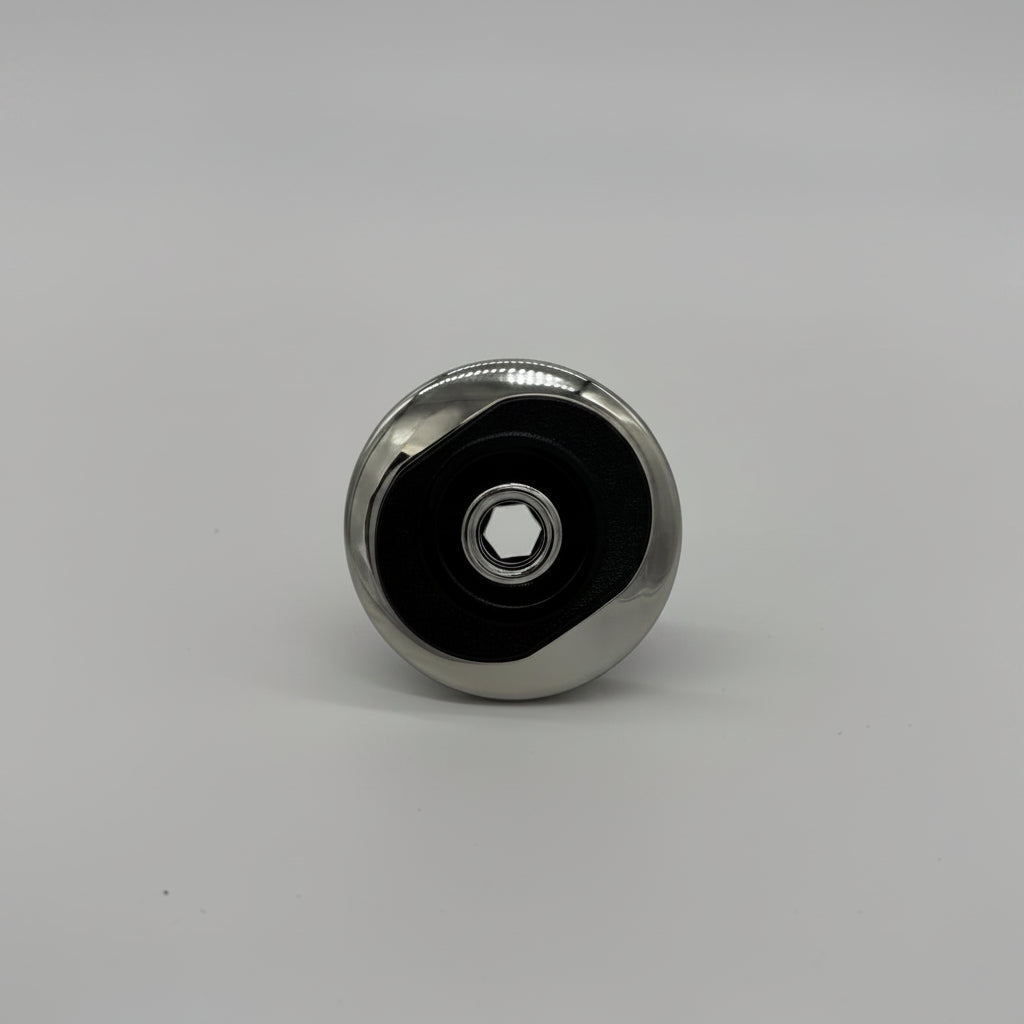

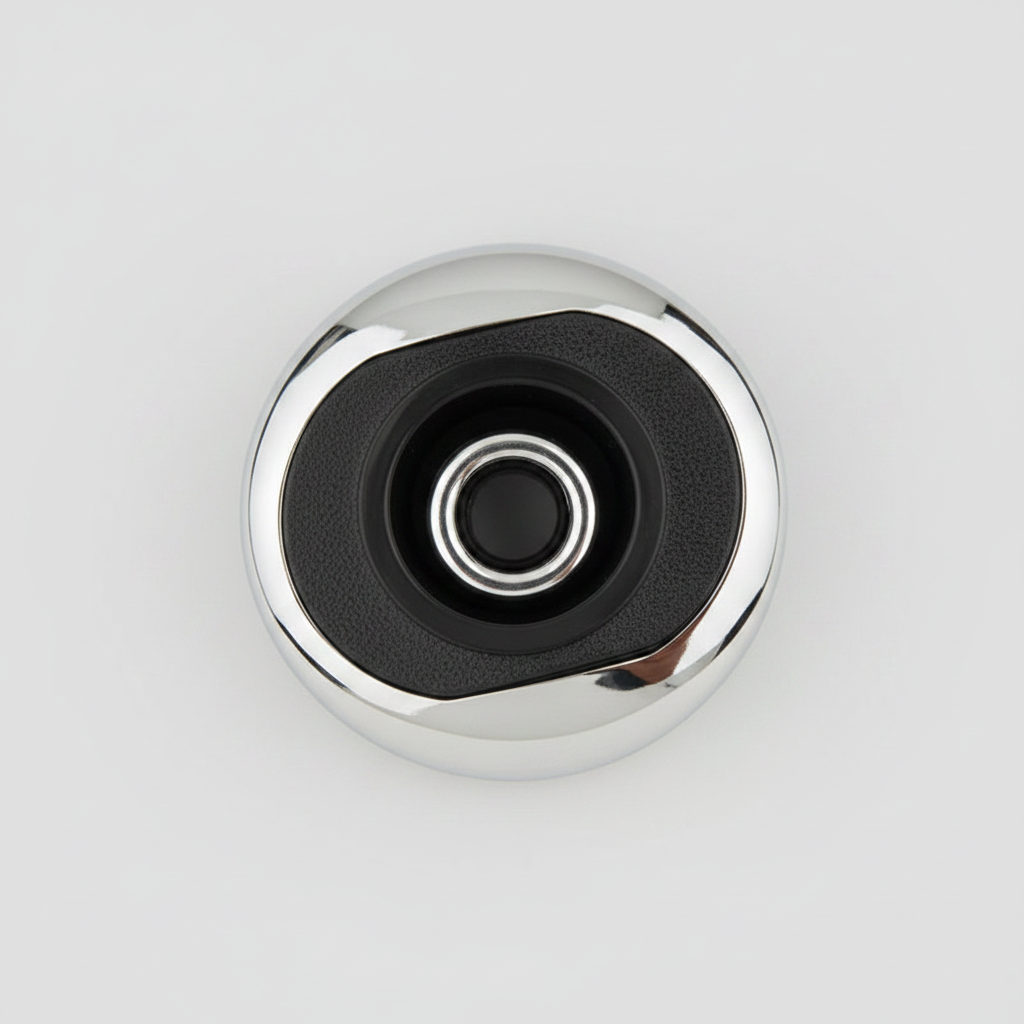

The jet features a screw‑in jet insert with a black face and chrome detailing, providing adjustable water flow and a clean, modern finish. The threaded jet insert screws securely into the supplied jet body, ensuring a solid seal and easy servicing when required.

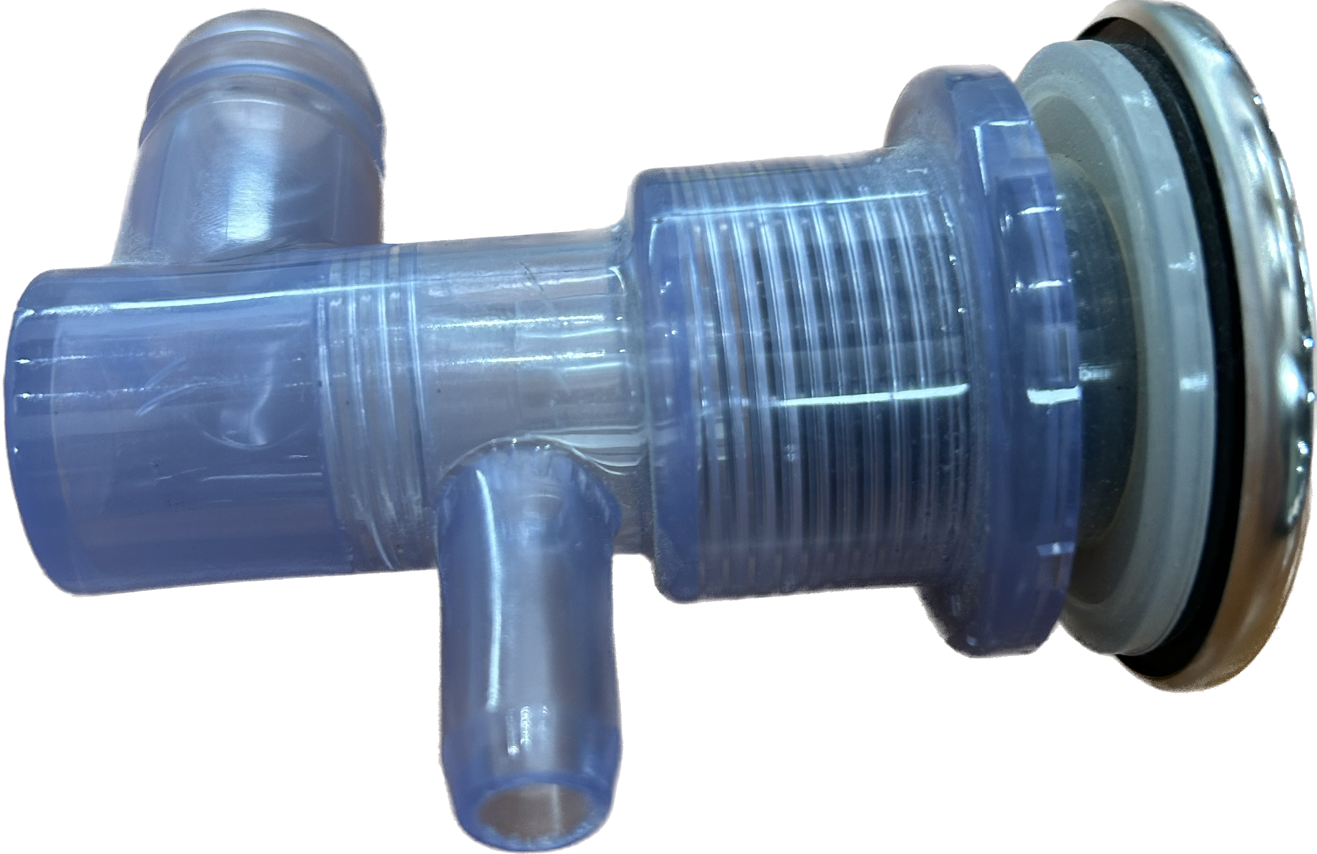

The included jet body incorporates separate water and air injection ports, allowing proper venturi air mixing for a strong massage effect.
Designed for direct replacement or new installations, the jet body fits cleanly into the spa shell using a threaded retaining system and sealing O‑ring, providing a watertight installation when correctly fitted.
Technical Specifications
- Jet Size (Face Diameter): 2"
- Catalina Ref: L-1011D
- Pressure Type: Pulsating
- Outer Face Diameter: 51mm
- Required Shell Hole Diameter: -/+ 25mm
- Jet Insert Type: Screw‑in
- Jet Thread Diameter: Approx. 21mm
- Face Colour: Black & Chrome
- Construction: Jet insert + complete jet body supplied
Plumbing Connections
- Water Port Size: Suits 19 mm hose
- Air Port Size: Suits 9 mm hose
- Air/Water Mixing: Integrated venturi system
Compatibility
-
Suitable For:
- Catalina X539 Swim Spa
- Catalina X529 Swim Spa

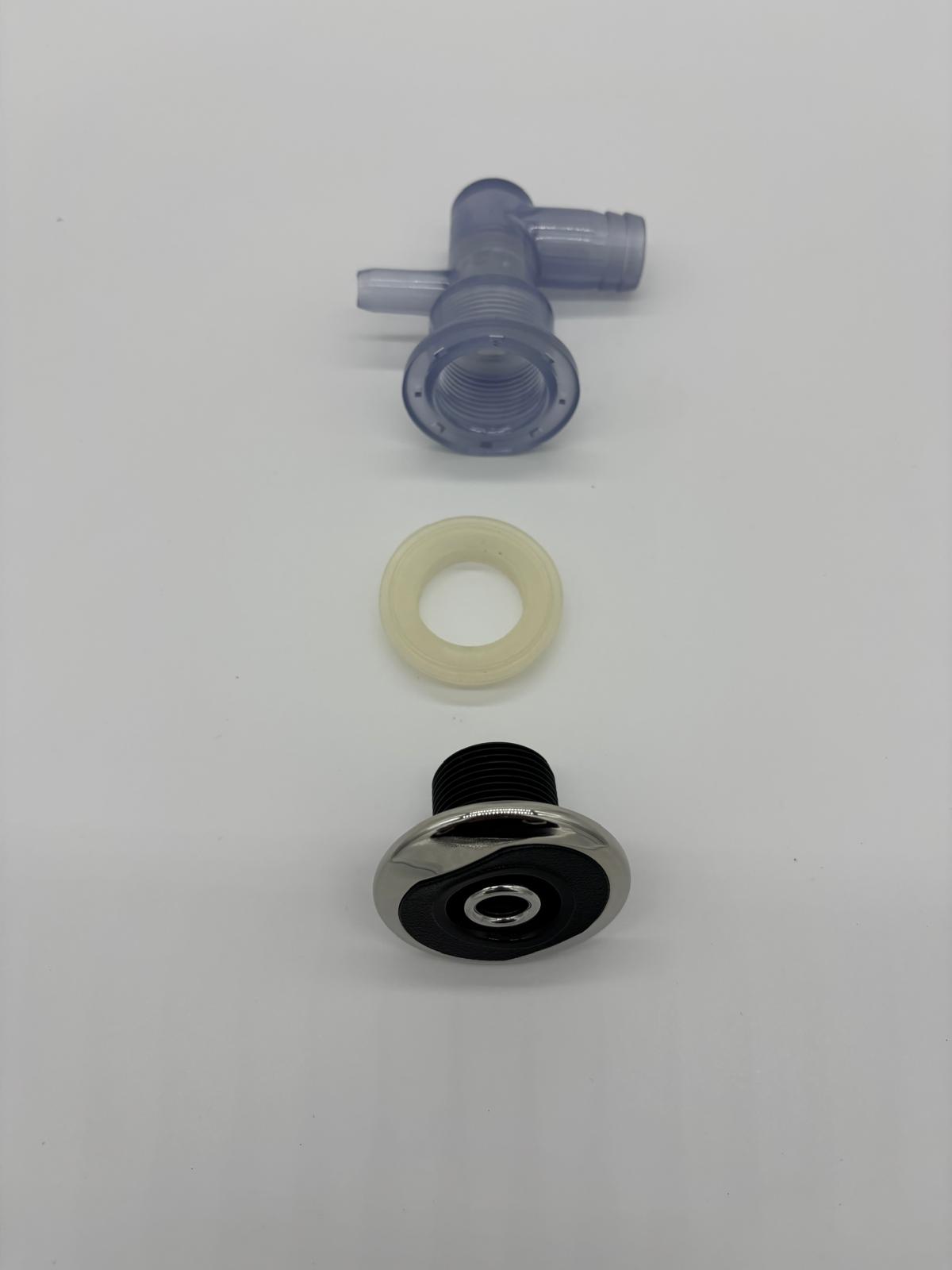

What’s Included
- 2" Black & Chrome screw‑in jet insert
- Jet body with water and air ports
- Sealing O‑ring
- Threaded retaining nut
Installation Notes
- Ensure correct 25mm shell hole size before installation
- Confirm hose sizes (19 mm water / 9 mm air) prior to plumbing
- LED light must be purchased separately
- Professional installation recommended
