Product Description

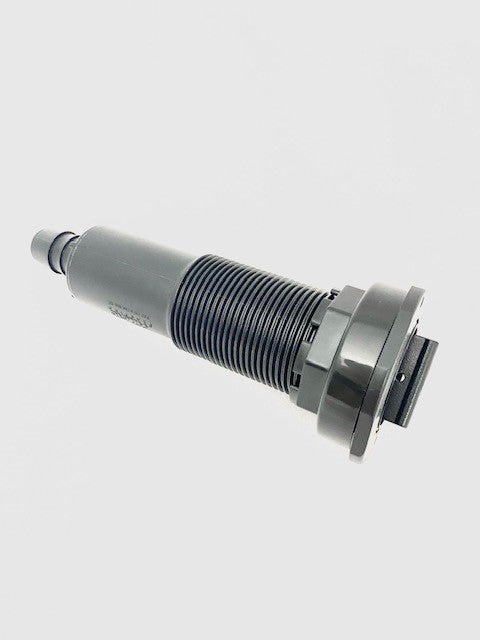

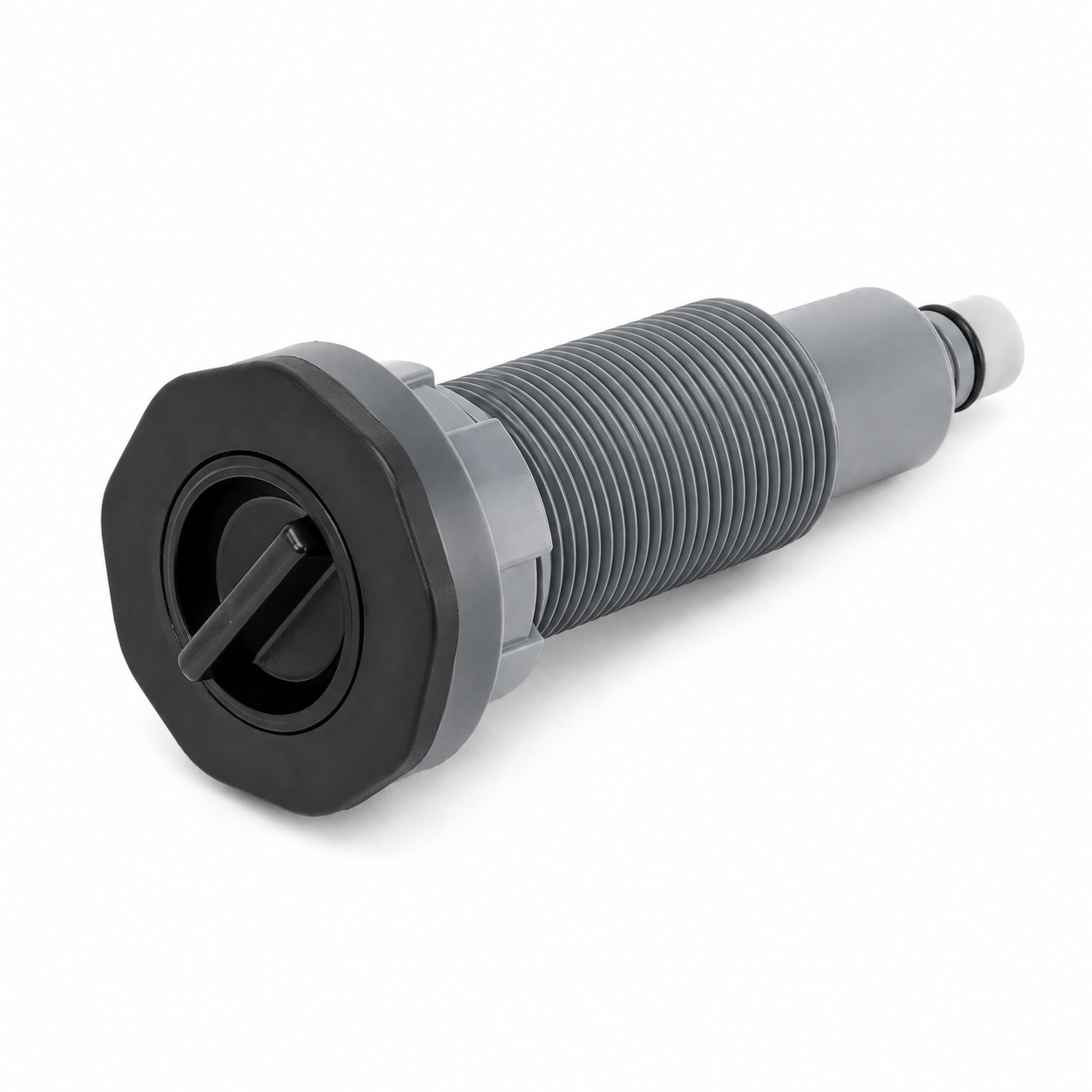

The Drain Valve Connection Kit for Spa – Ref. 0456‑05 is a complete replacement drain system designed to provide safe, reliable and easy water evacuation for hot tubs. This kit connects directly to a 19mm drain hose and is built from durable, chemical‑resistant materials suitable for long‑term spa use.

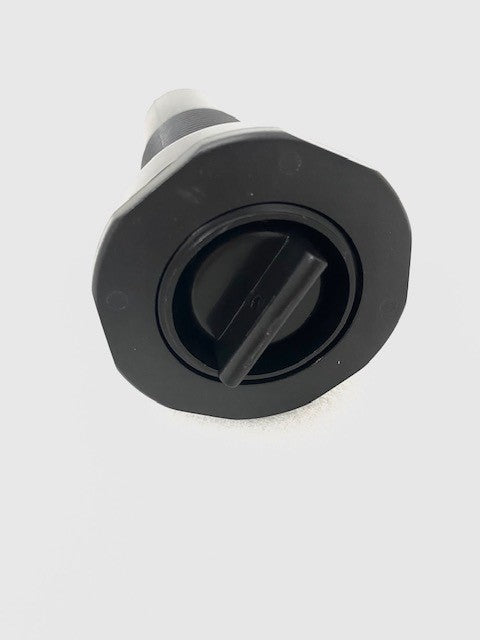

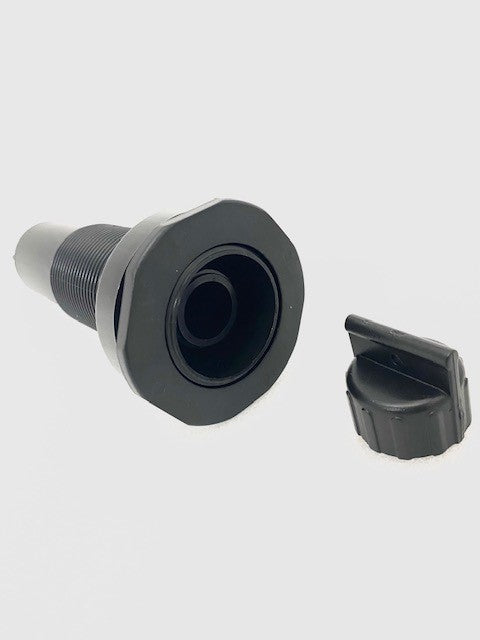

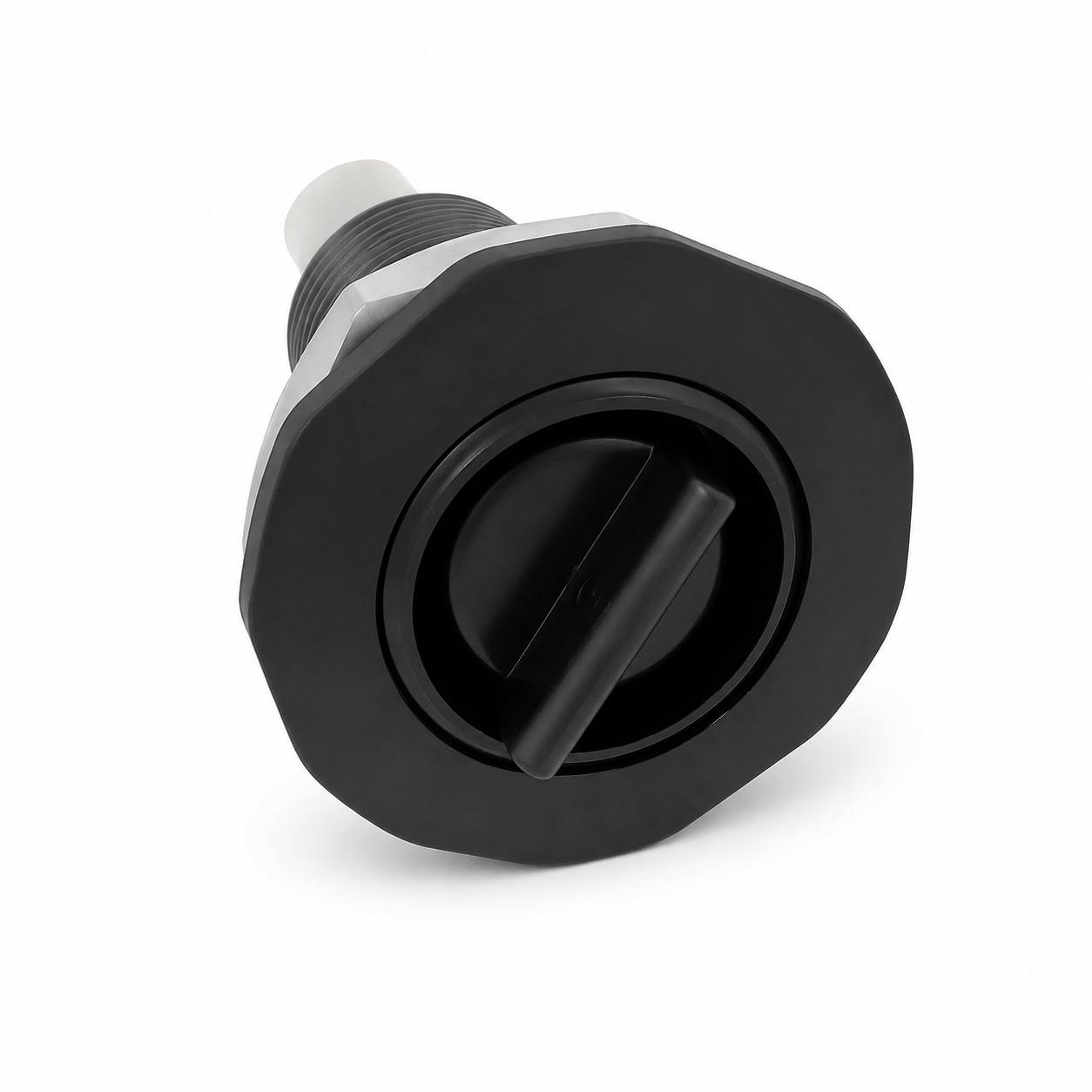

The valve features a Barb 19mm male input, allowing direct connection to the spa’s internal plumbing. The outlet end can be sealed using the threaded safety cap, or opened to attach a hose for directing water flow during draining. The safety‑cap mechanism ensures controlled, spill‑free operation.
Key Features
- Official reference 0456‑05
- Complete spa drain valve connection kit
- Barb 19mm male input for internal plumbing
- Fits 19mm drain hose
- Safety‑cap controlled opening and closing
- Threaded outlet accepts hoses or the included plug
- Durable, chemical‑resistant construction
- Universal compatibility with most spa brands
Technical Specifications
- Thread outer diameter: 44 mm
- Total length: 180 mm
- Outlet thread diameter: 26 mm
- Operation: Safety cap (open/close)
- Hole Size Required: 49.5mm
- Locking Nut Face Outer Diameter: 70mm
Ideal For
- Replacing faulty or leaking spa drain valves
- Routine spa cleaning and maintenance
- Winterizing procedures
- Spa refurbishments and plumbing upgrades
