Skip to product information
Description

Purpose-built for Australian homes where space is often limited but performance can’t be compromised, the Sensaheat TDX Series 32kW Top Discharge Heat Pump is a compact powerhouse designed to heat fast and fit neatly into challenging installation spaces. Ideal for side yards, narrow plant areas and modern backyards, this unit delivers premium pool heating without the bulk of traditional side-discharge models.

Borrowing all the advanced technology of the PI Series, the TDX range introduces a smart top discharge airflow system that allows the unit to be installed closer to walls or fences, reducing noise spread and maximising usable outdoor space. With inverter efficiency, whisper-quiet operation and Wi-Fi control as standard, the 32kW TDX is an excellent choice for families wanting year-round pool comfort with lower running costs.

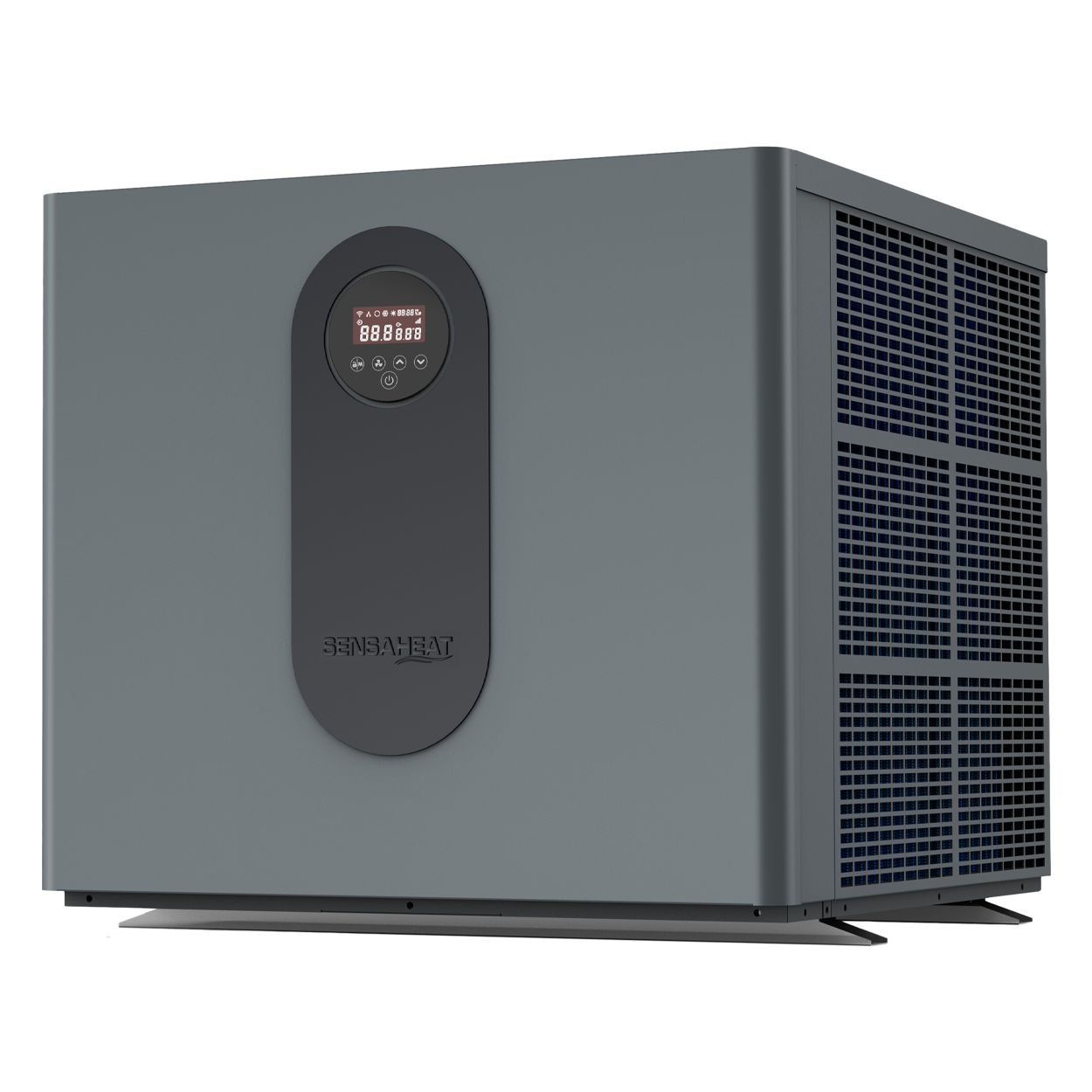

Sensapool TDX Series Top Discharge Heat Pump - 32kw

Regular price $12,284.72

SP-HPTDX32

Specifications
  • Availability:
    In stock

Purpose-built for Australian homes where space is often limited but performance can’t be compromised, the Sensaheat TDX Series 32kW Top Discharge Heat Pump is a compact powerhouse designed to heat fast and fit neatly into challenging installation spaces. Ideal for side yards, narrow plant areas and modern backyards, this unit delivers premium pool heating without the bulk of traditional side-discharge models.

Borrowing all the advanced technology of the PI Series, the TDX range introduces a smart top discharge airflow system that allows the unit to be installed closer to walls or fences, reducing noise spread and maximising usable outdoor space. With inverter efficiency, whisper-quiet operation and Wi-Fi control as standard, the 32kW TDX is an excellent choice for families wanting year-round pool comfort with lower running costs.

Sensapool TDX Series Top Discharge Heat Pump - 32kw

Product Information

Property Details
Brand Sensaheat
Specifications Performance Overview

Performance Condition: Air 27°C / Water 27°C / Humidity 80%

Heating Capacity: 32 kW

COP Range: 16.3 – 6.5

Average COP at 50% Speed: 11.5

Performance Condition: Air 15°C / Water 26°C / Humidity 70%

Heating Capacity: 22 kW

COP Range: 8.0 – 5.0

Average COP at 50% Speed: 7.0

Cooling Performance

Cooling Capacity: 14.0 kW (Air 15°C / Water 26°C / Humidity 70%)

Technical Details

Reverse Cycle: Standard

Operating Air Temperature: 0°C to 43°C

Heating Temperature Range: 18°C to 40°C

Cooling Temperature Range: 12°C to 30°C

Refrigerant: R32 (Low GWP of 675 – approx. 30% of R410A)

Wi-Fi: Standard

Heat Exchanger: Twisted Titanium

Compressor: Mitsubishi DC Inverter

Electrical

Power Supply: 230V, Single Phase

Electrical Connection: Hard Wired

Rated Input Power: 0.46 – 4.40 kW

Rated Input Current: 2.0 – 19.13 A

Maximum Input Current: 24.0 A

Acoustics

Sound Level @ 1m: 42.5 – 52.8 dB(A)

Sound Level @ 10m: 22.5 – 32.8 dB(A)

Hydraulics

Advised Water Flow: 160 – 200 L/min

Water Connection: 40 mm

Dimensions & Weight

Net Weight: 110 kg

Dimensions (L × W × H): 729 × 955 × 943 mm

Installation Notes & Recommendations

The top discharge airflow design allows for flexible placement in tight spaces, making it ideal for compact pool equipment areas.

Ensure clear vertical space above the unit for unrestricted airflow.

Electrical connection must be carried out by a licensed electrician.

Install on a solid, level base with adequate drainage.

Maintain recommended water flow rates to ensure efficiency and extend system life.

Professional installation is recommended to meet manufacturer guidelines and warranty conditions.
Functionality

The TDX Series operates using intelligent inverter technology, continuously adjusting its output to match your pool’s heating or cooling demand. This results in faster warm-up times when required, and ultra-efficient, quiet operation once the target temperature is reached.

Its reverse-cycle capability allows the unit to both heat and cool your pool water, making it perfect for Australia’s changing seasons. A user-friendly touch screen controller and built-in Wi-Fi connectivity provide effortless control, whether you’re poolside or away from home. At the heart of the system, a Mitsubishi DC compressor ensures smooth, reliable and long-lasting performance.
Key Features

Top Discharge Air Outlet – Vertical airflow enables installation closer to walls or fences

32kW Heating Capacity – Strong performance for medium to large residential pools

Inverter Technology – Maximises efficiency and reduces electricity consumption

Super Quiet Operation – Designed for peaceful backyard environments

Reverse Cycle Heating & Cooling – Comfort in every season

Eco-Friendly R32 Refrigerant – Lower environmental impact and higher efficiency

Touch Screen Controller – Simple, intuitive operation

Wi-Fi as Standard – Control and monitor remotely

Twisted Titanium Heat Exchanger – Corrosion-resistant and built for longevity

Mitsubishi DC Compressor – Proven reliability and smooth operation

Flexible Size Range – Available from 11kW through to 40kW
Documentation Warranty

Titanium Heat Exchanger: 25 Years

Compressor: 10 Years

Parts: 5 Years

On-Site Labour: 2 Years
