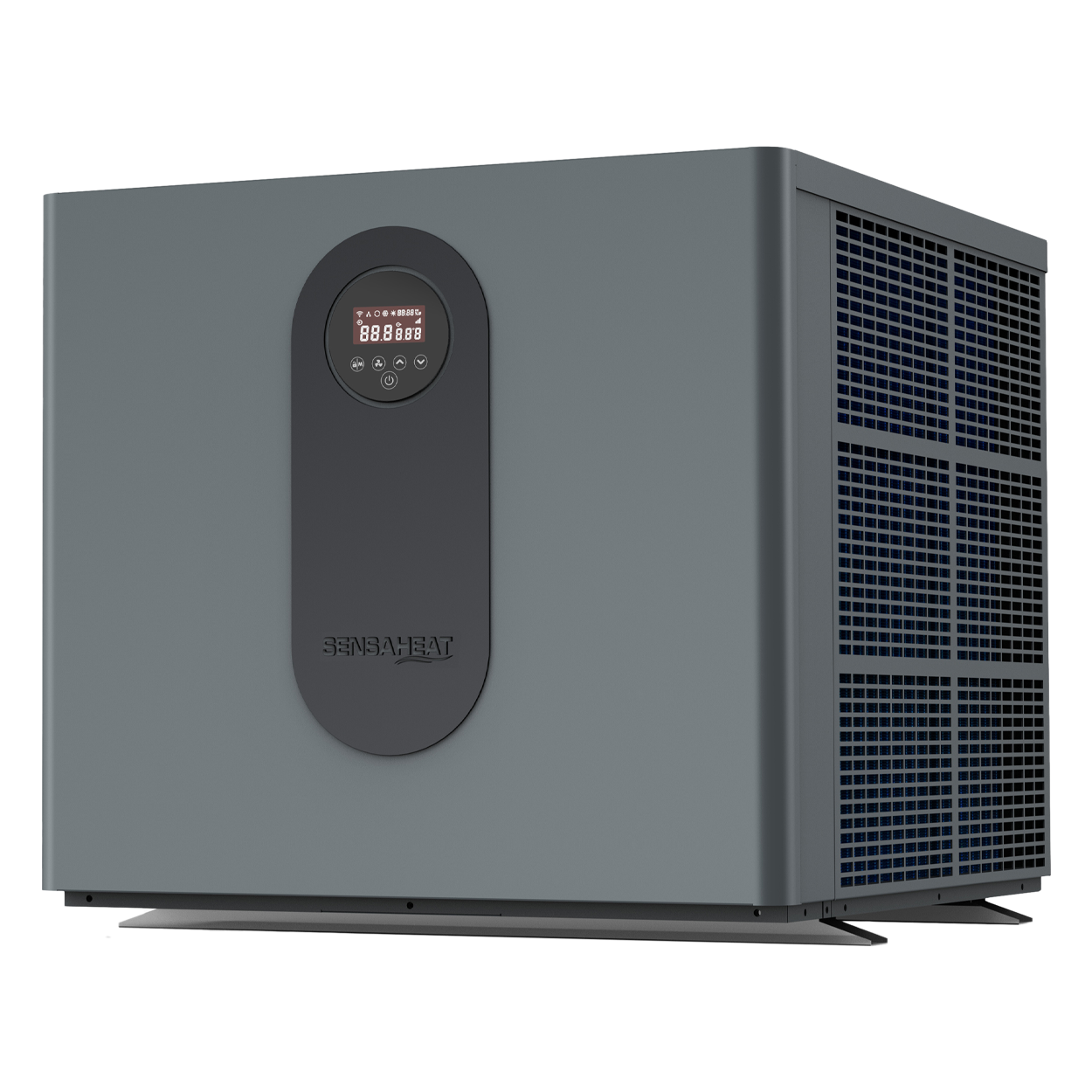

Sensapool TDX Series Top Discharge Heat Pump - 18kw
Description

SENSAHEAT TDX Series Heat Pump – 18kw Top Discharge

The SENSAHEAT TDX Series inverter heat pumps, have been specifically designed for pool and spa applications across Australia and New Zealand.

The TDX series heat pumps have been designed with a top discharge fan making them the ideal space saving solution.
Offering the latest and most efficient inverter technology and industry leading ultra quiet operation.
With heater sizes from 11kw up to 40kw, you can be sure to find a heater to suit your pool and spa requirements.

  • Top Discharge Air Outlet
    * Inverter Technology
    * Super Quiet Operation
    * Reverse Cycle, Heating and Cooling
    * Eco Friendly R32 Gas
    * Touch Control
    * Wifi Standard
    * Titanium Heat Exchanger
    * Mitsubishi DC Compressor

Heat Pump Specifications
Wattage (Heating Capacity): 18.0kw
Maximum Input Current : 16A
Union Size: 40mm
Lead Length: N/A
Plug Type: N/A
IP Rating: IPX4

Heat Pump Dimensions
Length: 710mm
Width: 753mm
Height: 693mm
Weight: 71kg

Warranty
25 Years (Heat Exchanger)
8 Years (Compressor)
2 Years (Parts)
2 Year (On-Site)

Sensapool TDX Series Top Discharge Heat Pump - 18kw

Regular price $4,965.00

SP-HPTDX18

Specifications
  • Availability:
    In stock

SENSAHEAT TDX Series Heat Pump – 18kw Top Discharge

The SENSAHEAT TDX Series inverter heat pumps, have been specifically designed for pool and spa applications across Australia and New Zealand.

The TDX series heat pumps have been designed with a top discharge fan making them the ideal space saving solution.
Offering the latest and most efficient inverter technology and industry leading ultra quiet operation.
With heater sizes from 11kw up to 40kw, you can be sure to find a heater to suit your pool and spa requirements.

  • Top Discharge Air Outlet
    * Inverter Technology
    * Super Quiet Operation
    * Reverse Cycle, Heating and Cooling
    * Eco Friendly R32 Gas
    * Touch Control
    * Wifi Standard
    * Titanium Heat Exchanger
    * Mitsubishi DC Compressor

Heat Pump Specifications
Wattage (Heating Capacity): 18.0kw
Maximum Input Current : 16A
Union Size: 40mm
Lead Length: N/A
Plug Type: N/A
IP Rating: IPX4

Heat Pump Dimensions
Length: 710mm
Width: 753mm
Height: 693mm
Weight: 71kg

Warranty
25 Years (Heat Exchanger)
8 Years (Compressor)
2 Years (Parts)
2 Year (On-Site)

Sensapool TDX Series Top Discharge Heat Pump - 18kw
Regular price $4,965.00

Product Information

Property Details
Brand Sensaheat
Specifications Performance Details

Performance Conditions: Air 27°C / Water 27°C / Humidity 80%

Heating Capacity: 18 kW

COP Range: 16.4 – 6.9

Average COP at 50% Speed: 12.2

Performance Conditions: Air 15°C / Water 26°C / Humidity 70%

Heating Capacity: 12.5 kW

COP Range: 8.2 – 5.0

Average COP at 50% Speed: 7.2

Cooling Performance (Air 15°C / Water 26°C / Humidity 70%)

Cooling Capacity: 7.1 kW

Technical Specifications

Reverse Cycle: Standard

Operating Air Temperature: 0°C to 43°C

Heating Temperature Range: 18°C to 40°C

Cooling Temperature Range: 12°C to 30°C

Wi-Fi: Standard

Heat Exchanger: Twisted Titanium

Electrical

Power Supply: 230V, Single Phase

Electrical Connection: Hard wired

Rated Input Power: 0.26 – 2.50 kW

Rated Input Current: 1.13 – 10.87 A

Maximum Input Current: 16.0 A

Acoustics & Plumbing

Sound Level at 1m: 41.2 – 47.5 dB(A)

Sound Level at 10m: 21.2 – 27.5 dB(A)

Recommended Water Flow: 70 – 100 L/min

Water Connection: 40 mm

Dimensions & Weight

Net Weight: 71 kg

Dimensions (L × W × H): 710 × 775 × 693 mm

Installation Notes & Recommendations

The top discharge design allows installation closer to fences or walls compared to side-discharge units.

Ensure sufficient vertical clearance above the unit to allow unrestricted airflow.

Installation should be carried out by a licensed professional to ensure electrical safety and optimal performance.

Maintain recommended water flow rates to protect the heat exchanger and maximise efficiency.
Functionality The Sensaheat TDX 18kW uses advanced inverter technology to regulate compressor speed based on pool demand. This ensures stable water temperatures while reducing power consumption and wear on components.

Its reverse cycle capability allows the unit to both heat and cool pool water, making it suitable for Australia’s changing seasonal conditions. The top discharge airflow design improves installation flexibility and helps keep operating noise to a minimum—perfect for homes with close neighbours.
Key Features Top Discharge Air Outlet – Vertical airflow allows tighter installation and reduced noise reflection

Inverter Technology – Automatically adjusts output for improved efficiency and lower running costs

Super Quiet Performance – Designed for residential environments

Reverse Cycle Operation – Heating and cooling modes for year-round comfort

Eco-Friendly R32 Refrigerant – Lower environmental impact with higher efficiency

Touch Screen Controller – Simple, intuitive temperature control

Wi-Fi as Standard – Remote operation via smart devices

Twisted Titanium Heat Exchanger – Long-lasting and corrosion resistant

High-Quality DC Compressor – Reliable performance with consistent output

Multiple Size Options – Available from 11kW up to 40kW
Documentation Warranty

Titanium Heat Exchanger: 25 Years

Compressor: 10 Years

Parts: 5 Years

On-Site Labour: 2 Years
