Description

Perfectly suited to smaller Australian pools and compact backyards, the Sensaheat TDX Series 11kW delivers fast, efficient heating in a space-saving design. Built for installations where room is limited, this unit features a top discharge airflow, allowing it to be positioned closer to walls or fences without sacrificing performance or increasing noise levels.

Drawing on the advanced technology of the Sensaheat PI range, the TDX 11kW combines inverter efficiency, whisper-quiet operation and smart Wi-Fi control. It’s an ideal solution for homeowners wanting to extend their swimming season while keeping energy use and running costs low.

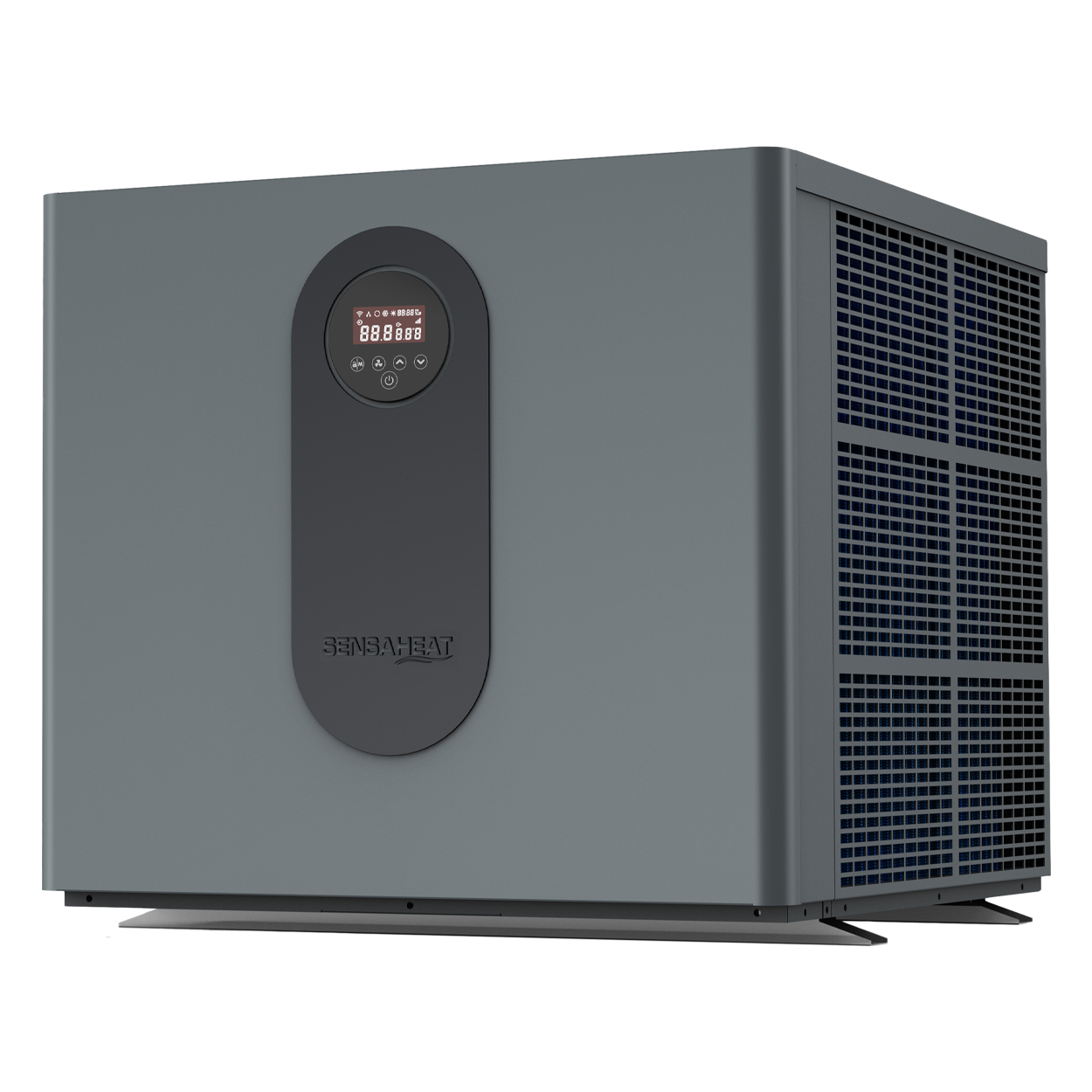

Sensapool TDX Series Top Discharge Heat Pump - 11kw

Regular price $4,057.22

SP-HPTDX11

Specifications
  • Availability:
    In stock

Perfectly suited to smaller Australian pools and compact backyards, the Sensaheat TDX Series 11kW delivers fast, efficient heating in a space-saving design. Built for installations where room is limited, this unit features a top discharge airflow, allowing it to be positioned closer to walls or fences without sacrificing performance or increasing noise levels.

Drawing on the advanced technology of the Sensaheat PI range, the TDX 11kW combines inverter efficiency, whisper-quiet operation and smart Wi-Fi control. It’s an ideal solution for homeowners wanting to extend their swimming season while keeping energy use and running costs low.

Sensapool TDX Series Top Discharge Heat Pump - 11kw

Product Information

Property Details
Brand Sensaheat
Specifications Performance Details

Performance Conditions: Air 27°C / Water 27°C / Humidity 80%

Heating Capacity: 11 kW

COP Range: 15.5 – 7.3

Average COP at 50% Speed: 11.6

Performance Conditions: Air 15°C / Water 26°C / Humidity 70%

Heating Capacity: 7.7 kW

COP Range: 7.5 – 5.0

Average COP at 50% Speed: 6.8

Cooling Performance (Air 15°C / Water 26°C / Humidity 70%)

Cooling Capacity: 4.5 kW

Technical Specifications

Reverse Cycle: Standard

Operating Air Temperature: 0°C to 43°C

Heating Temperature Range: 18°C to 40°C

Cooling Temperature Range: 12°C to 30°C

Wi-Fi: Standard

Heat Exchanger: Twisted Titanium

Electrical

Power Supply: 230V, Single Phase

Electrical Connection: 15A Plug

Rated Input Power: 0.15 – 1.54 kW

Rated Input Current: 0.65 – 6.70 A

Maximum Input Current: 10.0 A

Acoustics & Plumbing

Sound Level at 1m: 39.5 – 49.0 dB(A)

Sound Level at 10m: 19.5 – 29.0 dB(A)

Recommended Water Flow: 30 – 70 L/min

Water Connection: 40 mm

Dimensions & Weight

Net Weight: 61 kg

Dimensions (L × W × H): 710 × 753 × 693 mm

Installation Notes & Recommendations

The top discharge airflow allows installation closer to fences or walls, making it ideal for compact outdoor areas.

Ensure adequate vertical clearance above the unit for unrestricted airflow.

The 15A plug connection simplifies installation for most residential properties.

Installation by a licensed professional is recommended to ensure electrical safety and optimal performance.

Maintain advised water flow rates to protect the heat exchanger and maximise efficiency.
Functionality

The Sensaheat TDX 11kW uses advanced inverter technology to continuously adjust compressor speed based on heating or cooling demand. This ensures stable water temperatures while reducing energy consumption and component wear.

Its reverse cycle capability allows the unit to both heat and cool pool water, making it ideal for Australia’s changing seasonal conditions. The top discharge airflow design enhances installation flexibility and helps minimise noise reflection—ideal for homes with close neighbours.
Key Features

Top Discharge Air Outlet – Vertical airflow for flexible installation in tight spaces

Inverter Technology – Automatically adjusts output for superior energy efficiency

Super Quiet Operation – Designed for peaceful residential environments

Reverse Cycle Heating & Cooling – Comfortable pool temperatures all year round

Eco-Friendly R32 Refrigerant – Lower environmental impact with improved efficiency

Touch Screen Controller – Simple, intuitive temperature control

Wi-Fi as Standard – Convenient remote management via smart devices

Twisted Titanium Heat Exchanger – Exceptional durability and corrosion resistance

High-Quality DC Compressor – Smooth, reliable performance

Multiple Size Options Available – From 11kW to 40kW to suit various pool sizes
Documentation Warranty

Titanium Heat Exchanger: 25 Years

Compressor: 10 Years

Parts: 5 Years

On-Site Labour: 2 Years
