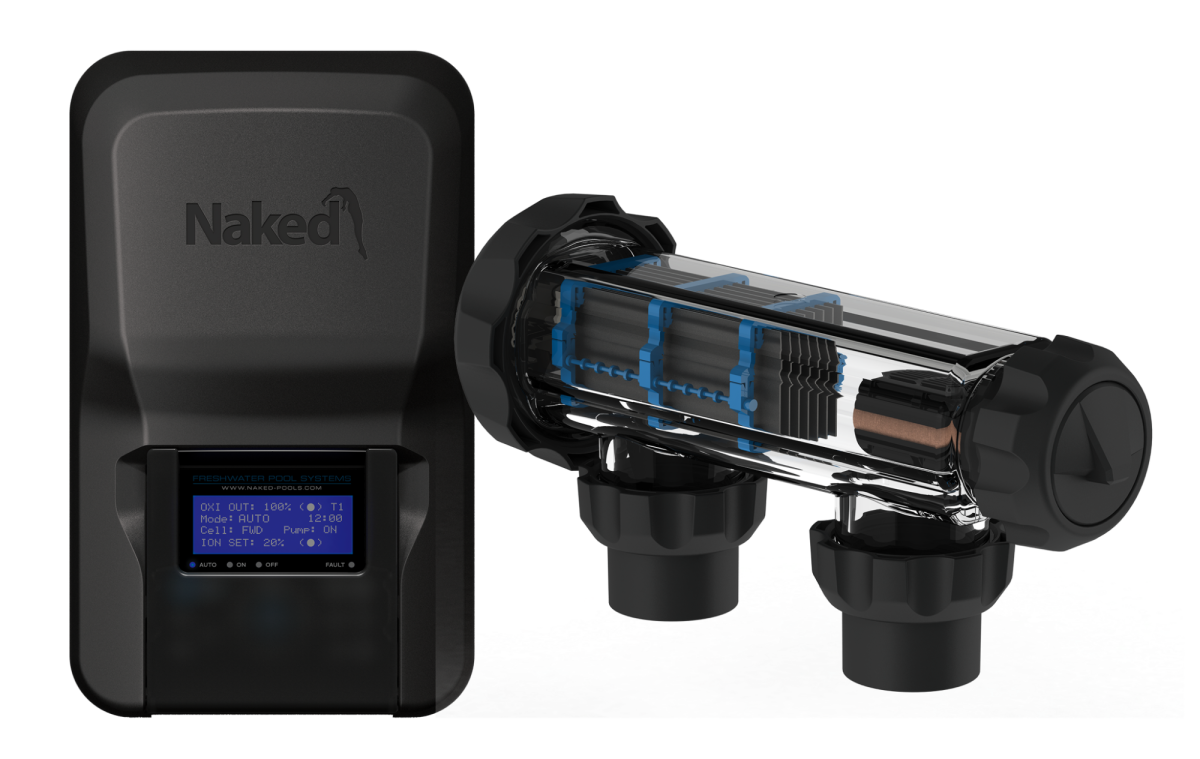

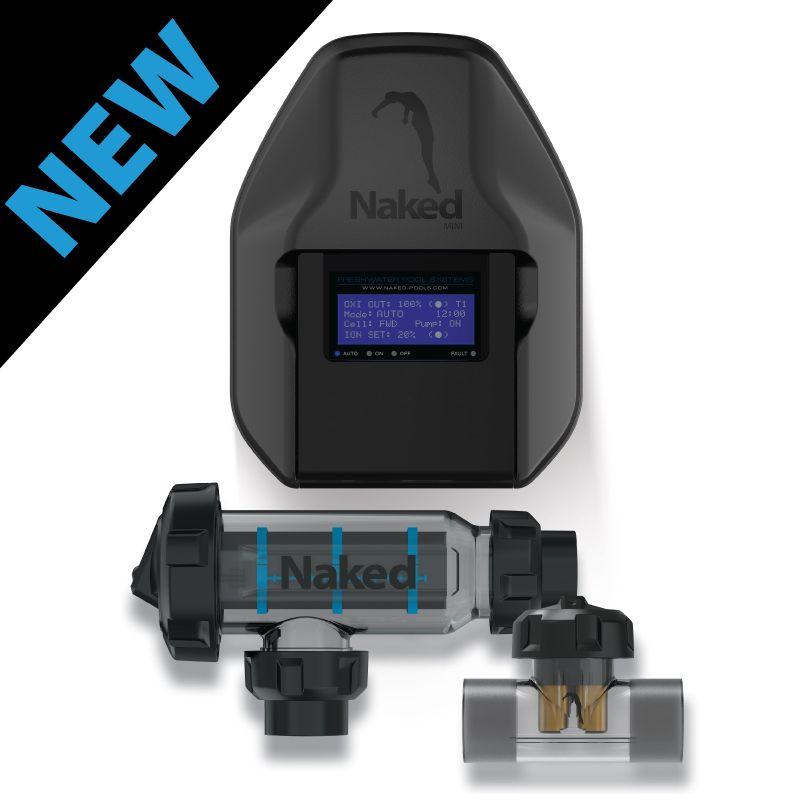

Naked MINI (NKD-M) Freshwater System
verything you require for a complete freshwater swimming experience.
One system suitable for pool sizes from 5,000 - 30,000 Litres.
Includes FREE Shipping anywhere in Australia.
3 YEAR WARRANTY
Volts Input (Vac): 220 - 265
Amps Input (Aac): 0.4
Total Power Consumption (W): 93
OXI Volts Output (Vdc): 10.3
OXI Amps Output (Adc): 5
Chlorine (g/hr)10 @ 800ppm TDS
Frequency (Hz): 50/60
Pump Outlet Rating (Aac): 9.4
Control Unit Dimensions (mm): 204W x 286H x 105D
Cell Housing Dimension (mm): 356L x 145D x 203H

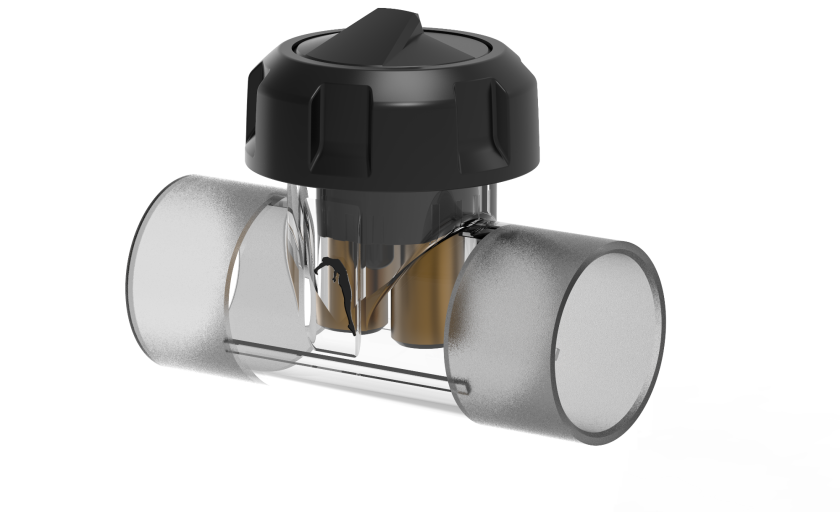

Ioniser Housing Dimension (mm): 158L x 100D x 138H
Cell Design9 Plate 140 x 60mm
Water Connection: 40/50mm
Water Flow Rate (L/min): 80 - 550
IP Rating: 23
Unit Shipping Dimensions (mm): 460L x 436W x 220H
Net Weight (kg): 9.5

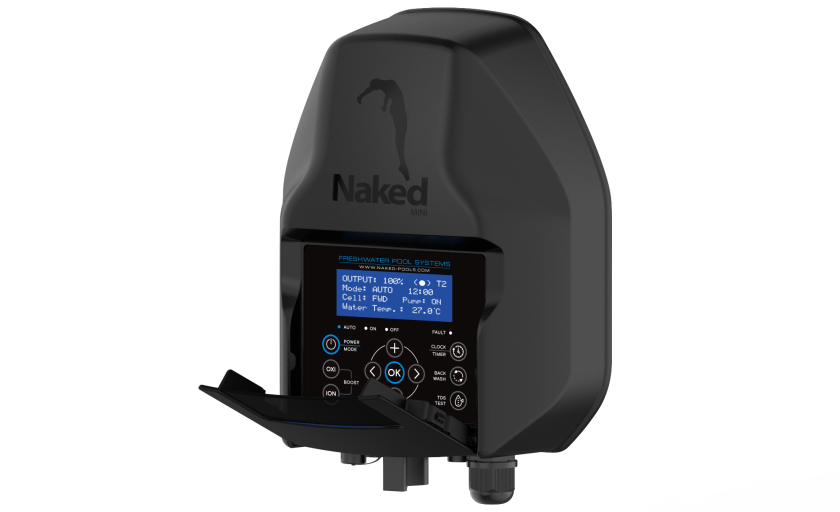

Naked NKD-R Freshwater System
Everything you require for a complete freshwater swimming experience.
One system suitable for pool sizes from 5,000 - 150,000 Litres.
Includes FREE Shipping anywhere in Australia.
5 YEAR WARRANTY
Volts Input (Vac): 220 - 265
Amps Input (Aac): 0.88
Total Power Consumption (W): 209.5
OXI Volts Output (Vdc): 8.5
OXI Amps Output (Adc)15
Chlorine (g/hr)15 @ 800ppm TDS
Frequency (Hz): 50/60
Pump Outlet Rating (Aac): 8.0
Control Unit Dimensions (mm): 202W x 332H x 164D
Cell Housing Dimension (mm): 420L x 138D x 195H
Cell Union Centre Distance (mm): 165
Cell Design 9 Plate 200 x 60mm
Water Connection: 40/50mm
Water Flow Rate (L/min): 80 - 650
IP Rating: 34
Unit Shipping Dimensions (mm): 460L x 436W x 220H
Net Weight (kg): 12.5
