The Madimack Inverter Plus 2.2kW is the high-capacity solution for pool owners with larger pumps (up to 3HP). This intelligent controller transforms a standard, energy-hungry single-speed pump into a sophisticated variable-speed system. By precisely managing motor output, it eliminates the "all or nothing" energy waste of traditional pumps, providing a custom flow rate that saves money, reduces noise, and improves filtration quality.

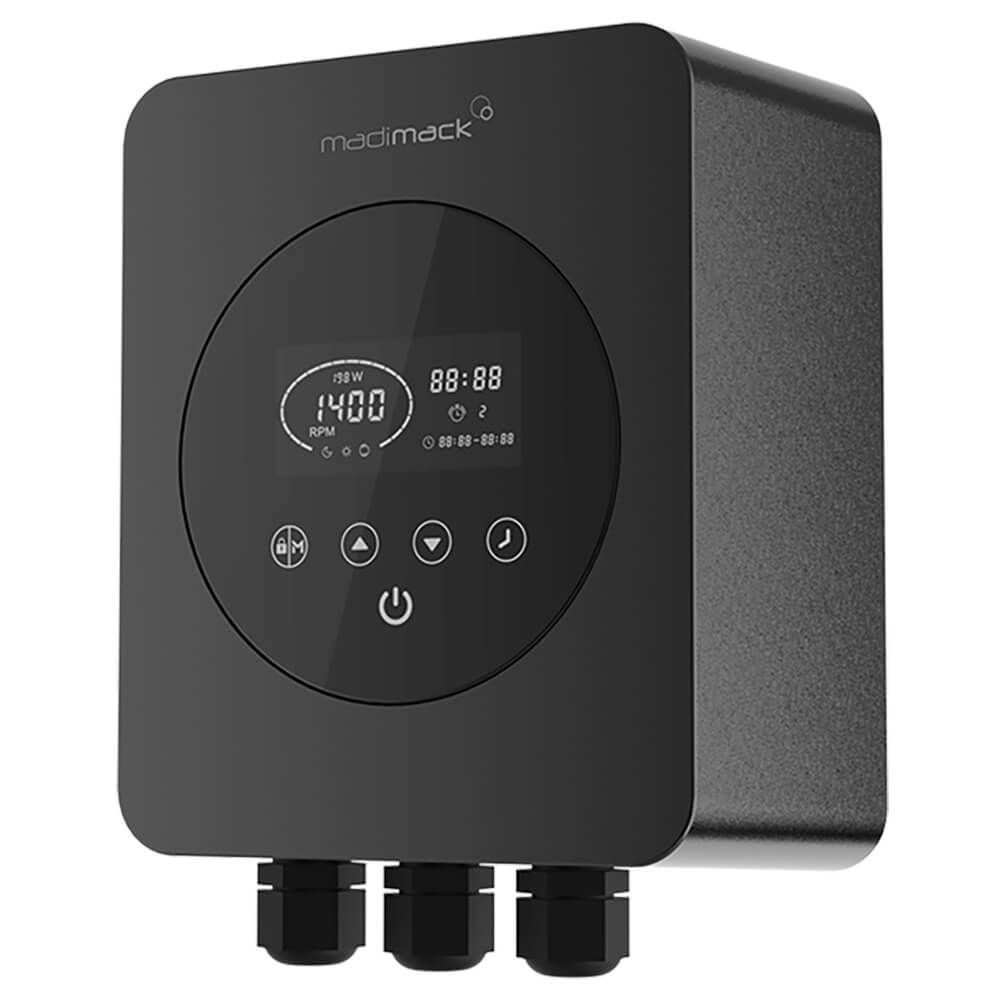

Madimack Inverter Plus 2.2kW (Converts Your Pool Pump to Variable Speed)
Regular price
$605.00
MM-IPLUS500
Specifications
-
Availability:
In stock
The Madimack Inverter Plus 2.2kW is the high-capacity solution for pool owners with larger pumps (up to 3HP). This intelligent controller transforms a standard, energy-hungry single-speed pump into a sophisticated variable-speed system. By precisely managing motor output, it eliminates the "all or nothing" energy waste of traditional pumps, providing a custom flow rate that saves money, reduces noise, and improves filtration quality.
Sorry, No results found!
Madimack Inverter Plus 2.2kW (Converts Your Pool Pump to Variable Speed)
Regular price
$605.00
Product Information
| Property | Details |
|---|---|
| Brand | Madimack |
| Model Number | INVPLUS2200 |
| Specifications | Output Power: Max 2.2kW (Suitable for pumps up to 3.0 HP) Input Power: 1 Phase AC Input Voltage: 220V – 240V Max Current: 12 Amps Speed Range: 1200 – 2900 RPM Cooling: Internal Fan-forced Ventilation Compatibility: Single Phase pumps (Standard residential pool pumps) |
| Functionality | Dynamic Speed Selection: Manually adjust speeds between 1200 and 2900 RPM to find the "sweet spot" for your specific pool and cleaner. Advanced Timer Settings: Features 4 built-in timers for 24-hour cycle management, allowing for different speeds at different times of the day. Thermal Protection: Intelligent cooling and internal sensors protect the inverter and your pump motor from overheating. User Interface: Features the signature Madimack "Diamond" touch screen for real-time power monitoring (Watts) and RPM control. |
| Key Features | Massive Power Capacity: Specifically designed to handle larger pumps up to 2.2kW (3HP). Extreme Energy Efficiency: Capable of reducing energy consumption by more than 80%, paying for itself through lower power bills. Silent Mode: Reduces pump noise by up to 20 times, making it ideal for high-density living or running filtration during cheaper overnight electricity windows. One-Touch Backwash: Includes a dedicated high-speed setting for backwashing filters at the push of a button. Enhanced Filtration: Slower water flow through the filter media allows for superior debris removal and clearer water. Plug-and-Play Simplicity: No complex hardwiring required for standard 10A/15A lead configurations. |
| Available Sizes | Unit Dimensions: 187mm (H) x 110mm (W) x 155mm (D) |
| Shape | Shape: Compact, vertical wall-mount design with a sleek, weather-resistant outer shell. |
| Documentation | Warranty: 1-Year Comprehensive Warranty. Certifications: Fully compliant with Australian Electrical Safety Standards. Technical Support: Access to Madimack’s 24-hour response service and nationwide network of authorized technicians. |
