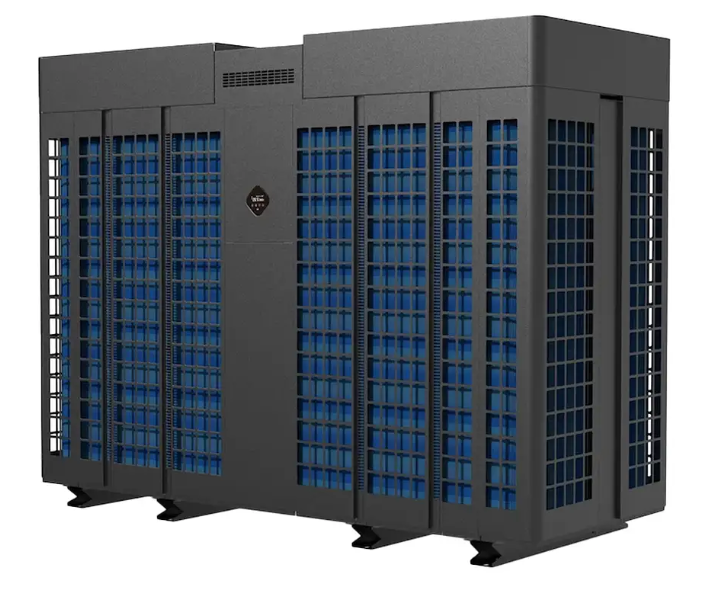

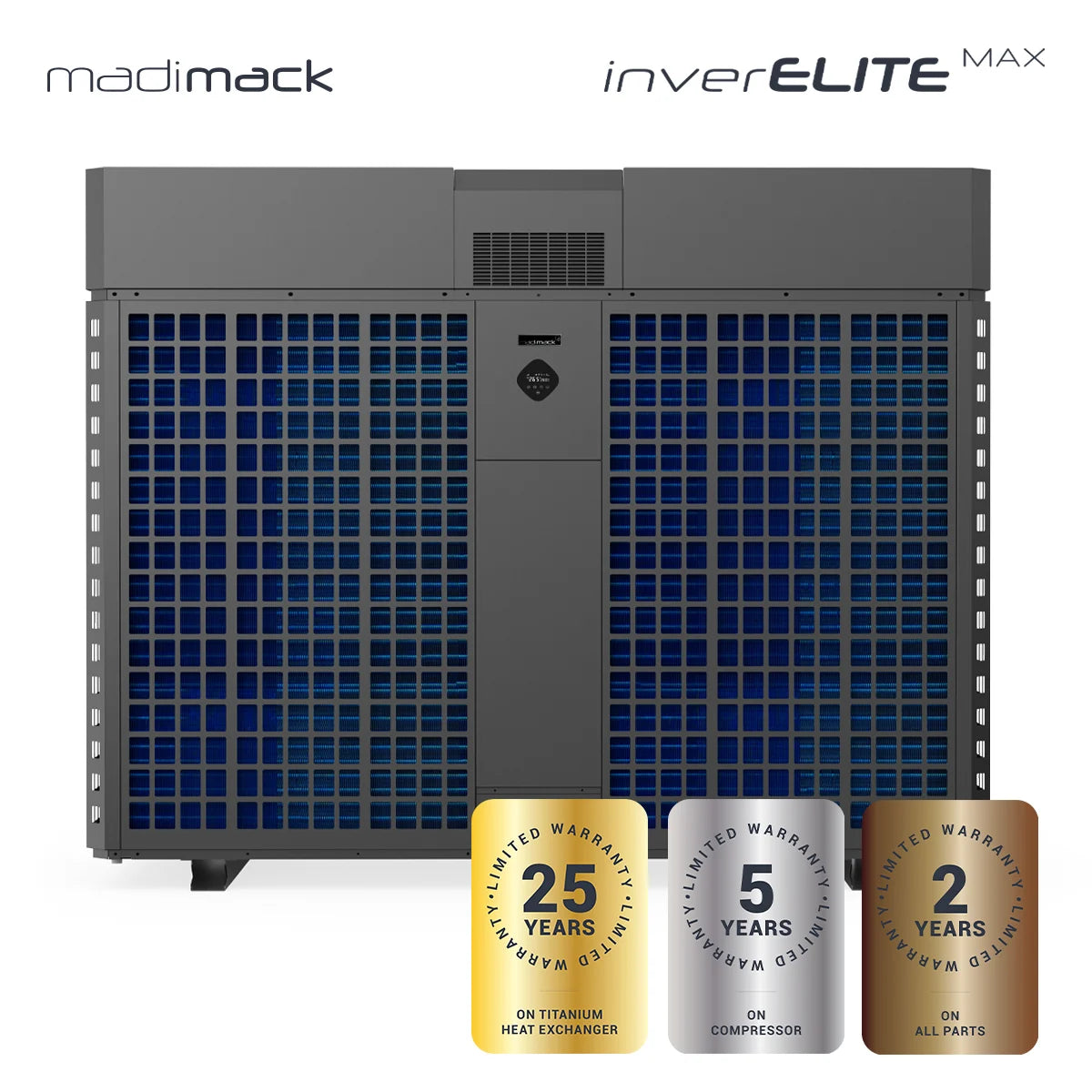

Madimack Elite Max 250.0kw Top Discharge Heat Pump – Three Phase

THERE IS A MINIMUM 8 WEEK WAIT FOR STCK ONCE ORDER IS PLACED

These powerful Commercial Pool Heaters have the capacity to cope with the demands of any aquatic facility. Built with cutting edge technology and climate adaptive features, the Madimack’s commercial heat pump keeps up all year round whilst reducing energy bills significantly.

Ideal For: Schools, Resorts, Wellness Centres, Hotels and Public Pools.

Key Features

• Bespoke system designs
• Energy modelling
• Full HVAC system
• Heat recovery
• Dehumidification
• Ventilation controls
• Integrated energy systems
• Servicing and maintenance
• Portable hot water generation
• Smart controls

Please consult with a commercial pump specialist to ensure the correct pump is selected for this installation.

Heat Pump Specifications
Wattage (Heating Capacity): 250kw
Power Supply:  400V 3ph
Maximum Input Current : 68A (Per Phase)
Union Size: 110mm
Recommended Water Flow: 1200lpm
IP Rating: IPX4

Heat Pump Dimensions
Length: 2600mm
Width: 1051mm
Height: 2069mm
Weight: 1165kg

Warranty
25 Years (Heat Exchanger)
5 Years (Compressor)
2 Years (Parts)
1 Year (On-Site)
