Product Description

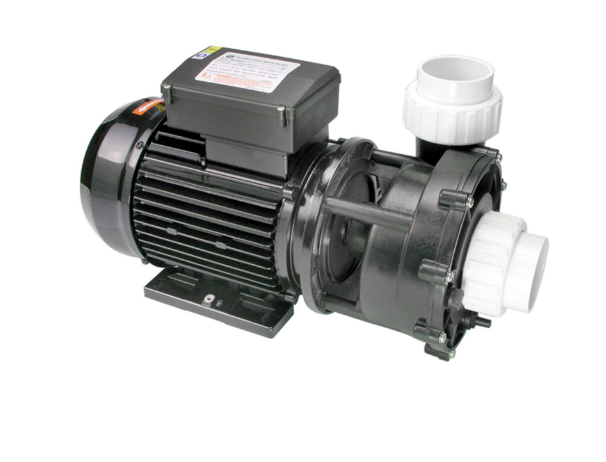

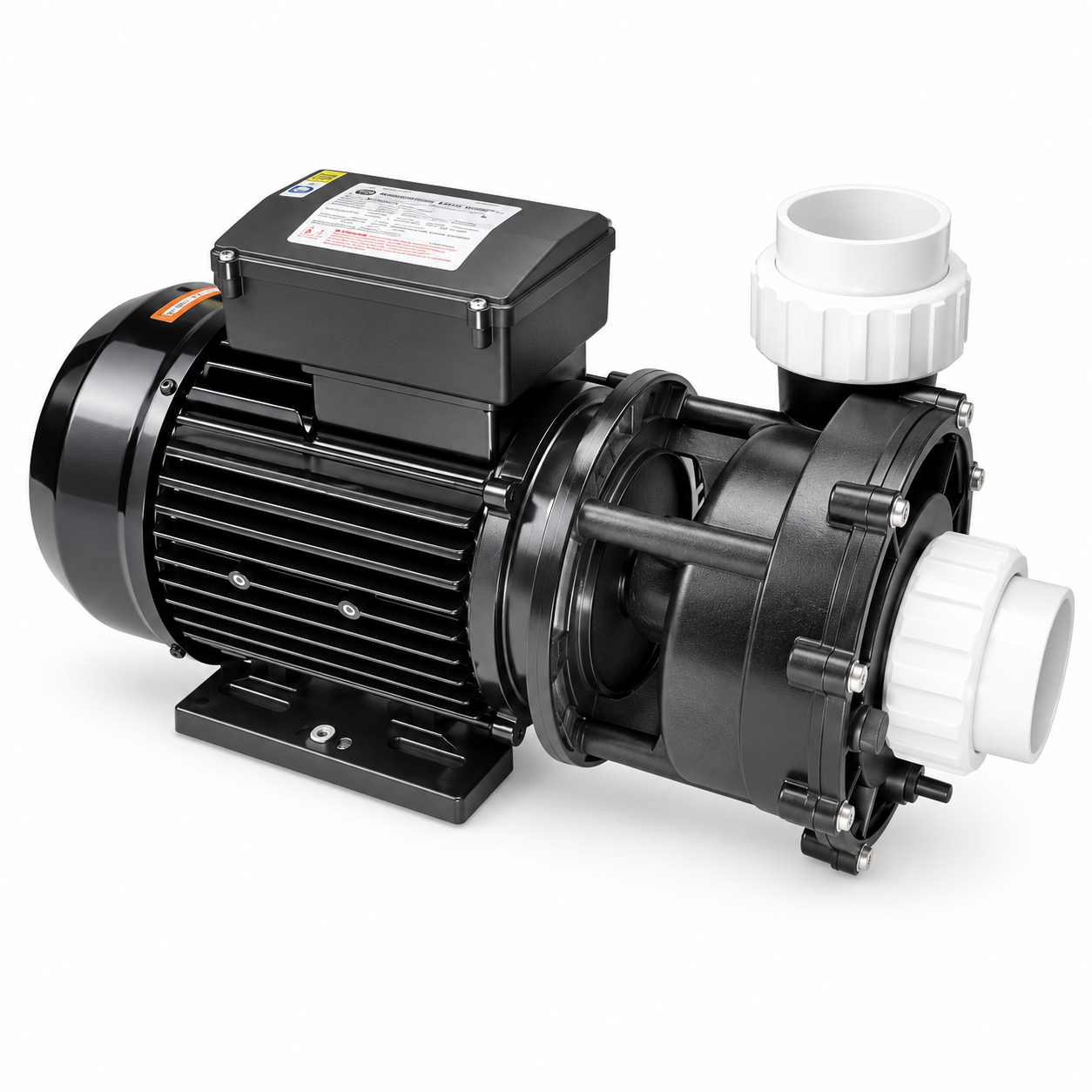

The LX Pump WP300‑2 is a high‑performance 3HP, 2‑speed massage pump designed for spa and hot tub jet systems requiring strong water flow and reliable operation. Running on a 50Hz power supply, this pump is well‑suited for Australian spa installations and replacement applications.
The dual‑speed motor allows low‑speed operation for efficient circulation and filtration, while high speed delivers powerful jet action for massage performance. Manufactured by LX, a globally recognized spa pump supplier, the WP300‑2 is known for durability, quiet operation, and consistent output.
This pump is commonly used as a direct replacement for failed or aging spa massage pumps and is compatible with a wide range of spa plumbing layouts.
✅ Technical Specifications
- Pump Model: LX WP300‑2
- Pump Type: Spa / Hot Tub Massage Pump
- Motor Power: 3.0 HP
- Speed: 2 Speed (Low / High)
- Frequency: 50Hz
- Voltage: 220–240V
- Phase: Single Phase
-
Current (Approx.):
- Low Speed: ~4–6A
- High Speed: ~10–12A
- Connection Size: 2″ inlet / 2″ outlet (standard spa unions)
- Pump Orientation: Side discharge, centre suction
- Motor Frame: 56 Frame
- Cooling: Air‑cooled motor
- Insulation Class: Class F
- Thermal Protection: Built‑in thermal overload protection
- Seal Type: Mechanical carbon/ceramic shaft seal
- Application: Spa & hot tub jet systems
- Duty Use: Continuous
- Manufacturer: LX Pump
Applications
- Spa and hot tub massage jet circuits
- High‑flow spa jet systems
- Replacement for compatible LX 2‑speed massage pumps
⚠️ Important:
Installation should be performed by a qualified technician. Please confirm plumbing size, electrical requirements, and pump orientation before ordering to ensure correct compatibility with your spa system.
