Product Description

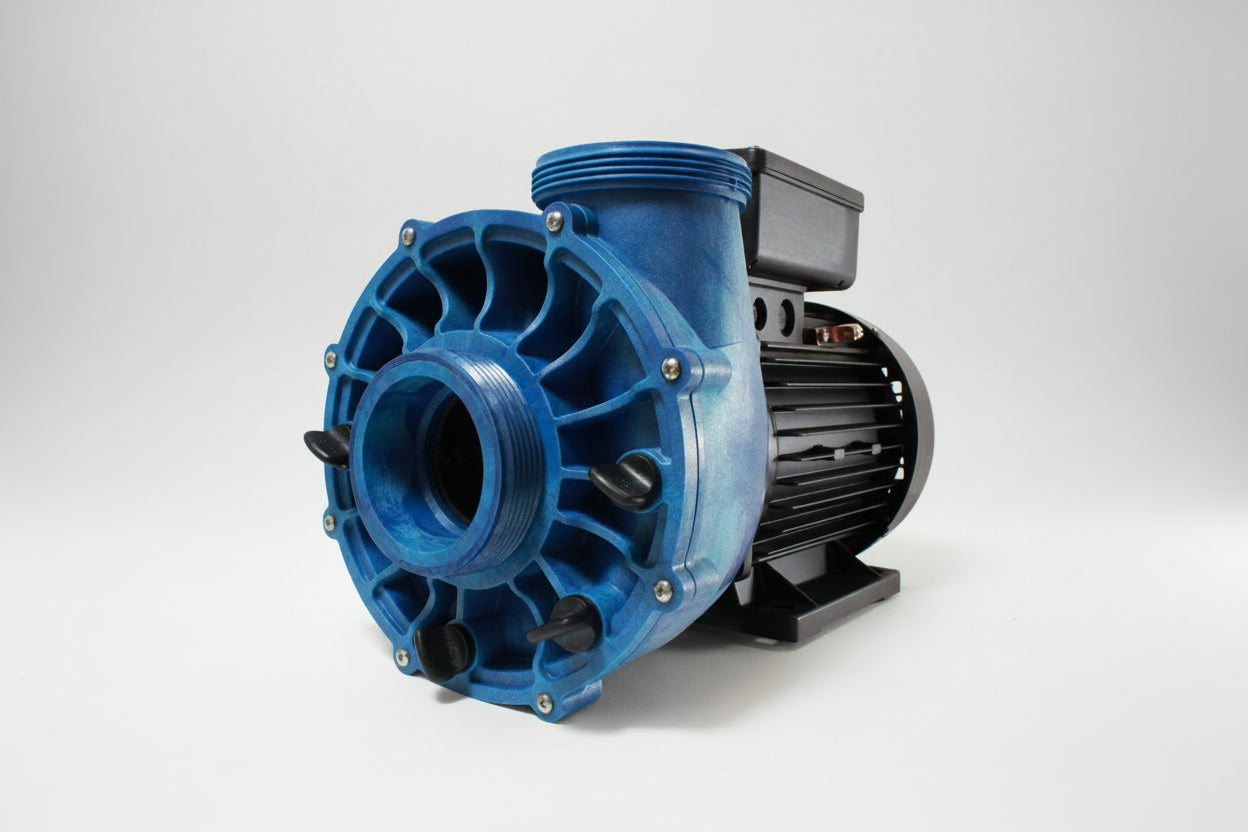

The Gecko XP3 Spa Pump is a powerful 4.2HP single‑speed pump designed for high‑performance spa and hot tub jet systems. Operating on a 50Hz power supply, this pump is ideally suited for Australian spa installations and heavy‑duty massage applications.
Equipped with a 2.5″ suction inlet, the XP3 delivers exceptionally high flow rates and strong jet pressure, making it ideal for large spas with multiple jets. Supplied with a factory‑fitted 6‑metre lead and amp plug, this pump offers convenient installation where plug‑and‑play configurations are required.
Manufactured by Gecko, a global leader in spa equipment, the XP3 range is known for robustness, reliability, and long service life. This unit is commonly used as a replacement for existing XP3 pumps and other high‑flow spa massage pumps.
Technical Specifications
- Pump Model: Gecko XP3
- Part Number: 63‑08243000‑6341
- Pump Type: Spa / Hot Tub Massage Pump
- Motor Power: 4.2 HP
- Speed: Single Speed
- Frequency: 50Hz
- Voltage: 220–240V
- Phase: Single Phase
- Electrical Lead: 6‑metre pre‑fitted cable
- Plug Type: Amp plug
- Current (Approx.): ~12–14A
- Suction Size: 2.5″
- Discharge Size: 2.5″
- Pump Orientation: Side discharge, centre suction
- Motor Frame: 56 Frame
- Cooling: Air‑cooled motor
- Insulation Class: Class F
- Thermal Protection: Built‑in thermal overload protection
- Seal Type: Mechanical carbon/ceramic shaft seal
- Application: High‑flow spa jet systems
- Duty Use: Continuous
- Manufacturer: Gecko Alliance
Applications
- High‑performance spa and hot tub massage jet systems
- Large spas with multiple jets
- Replacement for compatible Gecko XP3 and other high‑flow pumps
⚠️ Important:
Installation should be performed by a qualified technician. Please confirm plumbing size, electrical requirements, and pump orientation before ordering to ensure compatibility with your spa system.
