Product Description

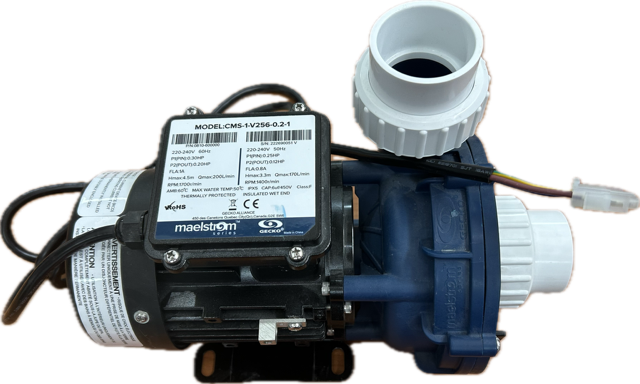

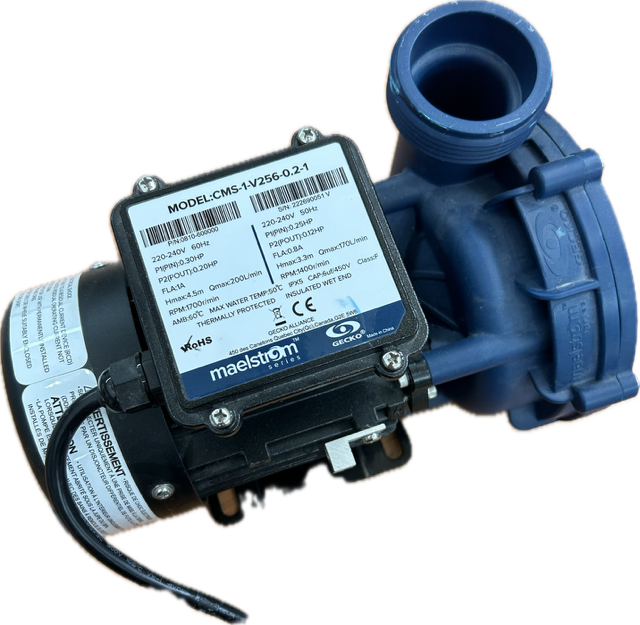

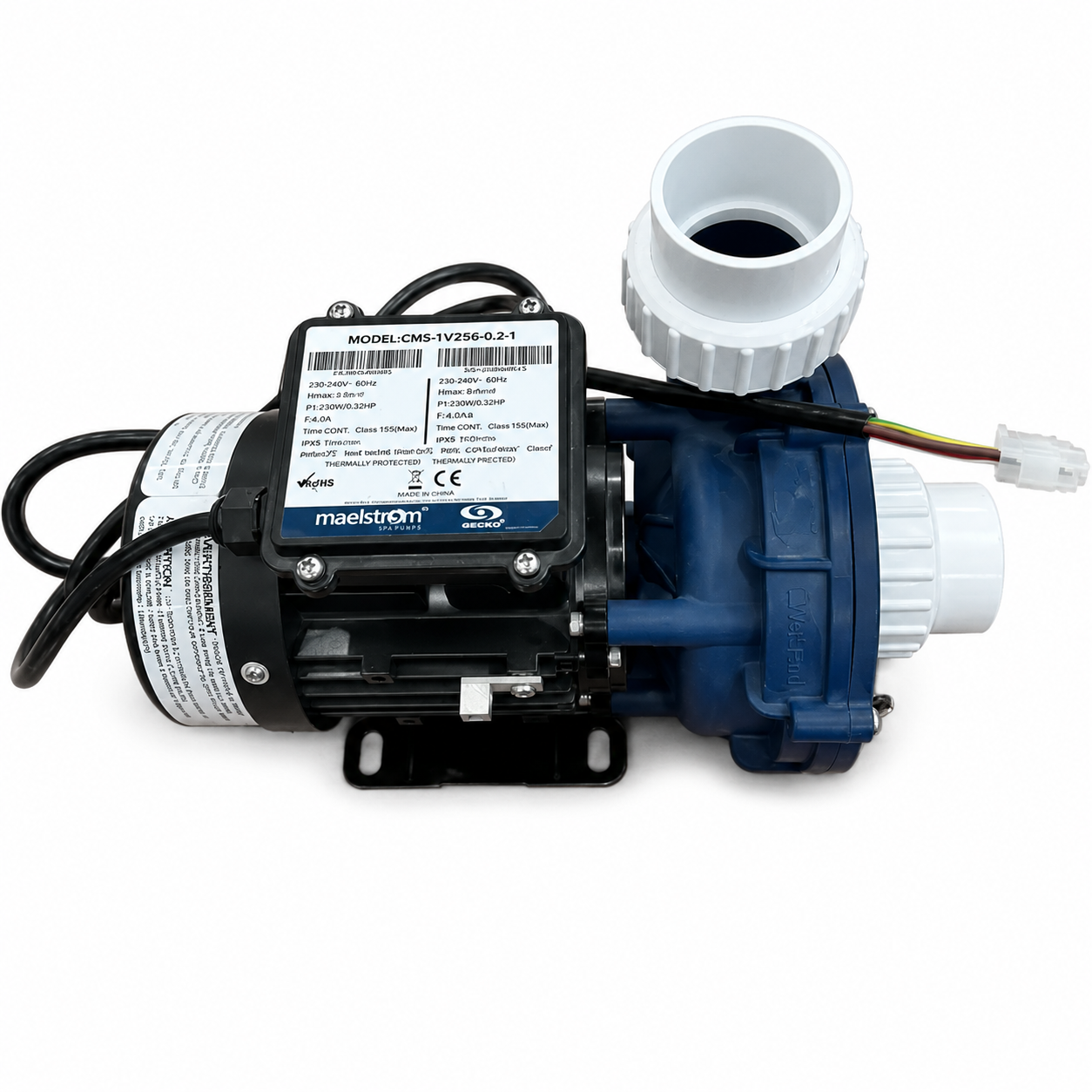

The Gecko Maelstrom CMS‑1 circulation pump (40mm) is a compact, high‑efficiency pump designed for continuous water circulation in spas and hot tubs. Engineered by Gecko Alliance, this pump ensures reliable water flow, effective filtration, and consistent heating system performance.
Operating on 220–240V power supply, the CMS‑1 provides smooth and quiet operation with optimized energy consumption. The thermally protected motor and insulated wet end enhance safety and durability, even in demanding spa environments. Its IPX5 protection rating makes it suitable for wet installations, while compliance with CE and RoHS standards ensures quality and environmental safety.
With a maximum flow rate of up to 200 L/min and a maximum head pressure of 4.5 meters, the Maelstrom CMS‑1 is an excellent replacement or upgrade circulation pump for many modern spa systems using 40mm plumbing connections.
Technical Specifications
- Brand: Gecko Alliance
- Series: Maelstrom
- Model: CMS‑1‑V256‑0.2‑1
- Part Number: 0600‑800000
- Voltage: 220–240V
- Frequency: 50Hz / 60Hz
-
Input Power (P1):
- 0.25 HP (50Hz)
- 0.30 HP (60Hz)
-
Output Power (P2):
- 0.12 HP (50Hz)
- 0.20 HP (60Hz)
-
Current:
- 0.8A (50Hz)
- 1.0A (60Hz)
-
Max Flow Rate:
- 170 L/min (50Hz)
- 200 L/min (60Hz)
-
Max Head:
- 3.3 m (50Hz)
- 4.5 m (60Hz)
- Speed: 1400 RPM (50Hz) / 1700 RPM (60Hz)
- Water Temperature Rating: Up to 50 °C
- Protection Rating: IPX5
- Insulation Class: Class F
- Connection Size: 40 mm
- Additional Features: Thermally protected motor, insulated wet end
