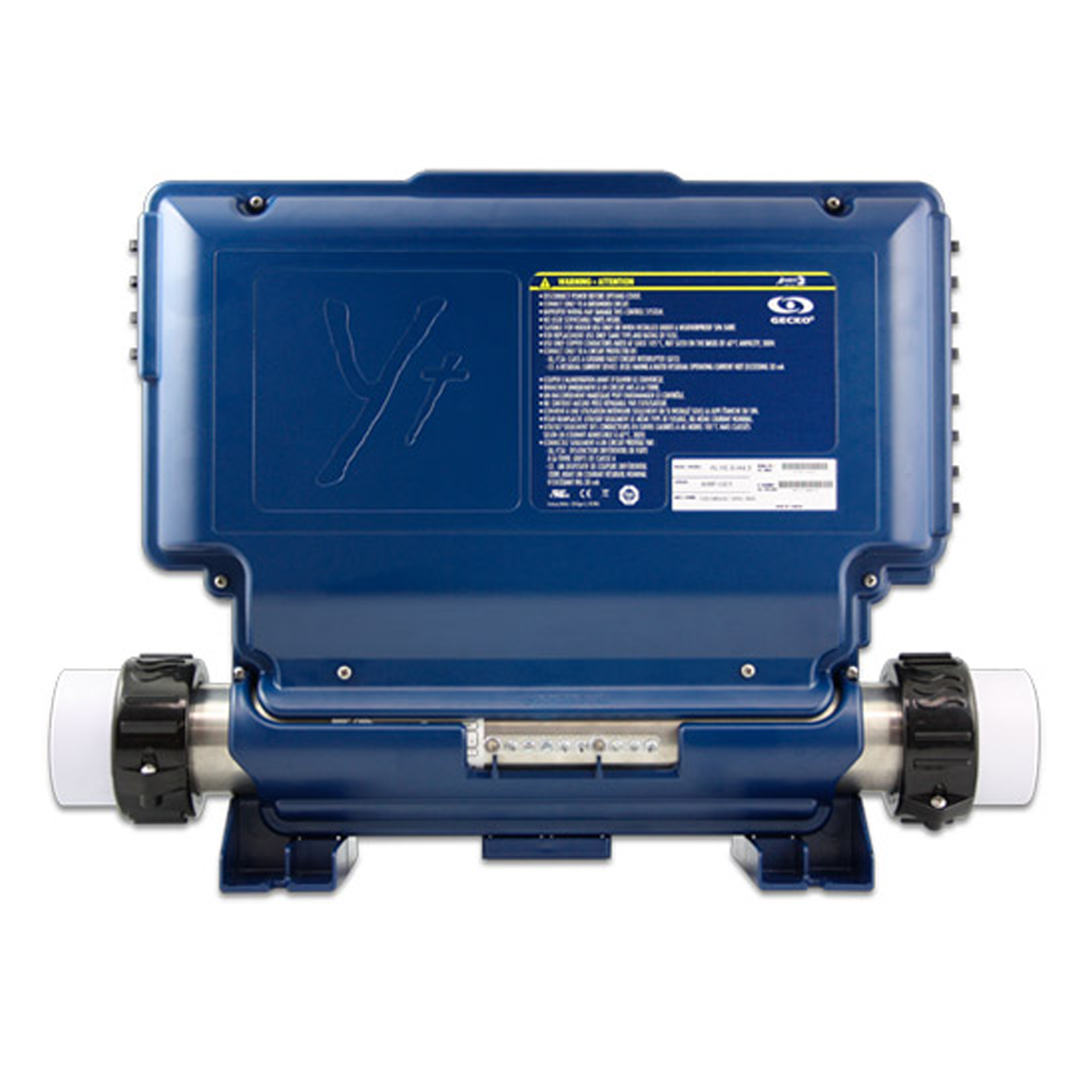

Gecko Aeware IN.YT-7 4.0kw Controller

Description

Description

The Gecko Aeware IN.YT-7 4.0kW Controller is a powerful, highly flexible spa control system designed for demanding spa configurations commonly found in Australian homes. Built on the proven Aeware platform and sharing core architecture with the in.xe series, the IN.YT-7 stands out by using industry-standard AMP plug connections, making it an ideal replacement for many Balboa spa packs—often without the need to rewire pumps or replumb pipework.

Supplied with a high-capacity 4.0kW in-line heater, this controller supports a wide range of pump, blower, lighting, ozone, circulation, and audio combinations. Whether you’re upgrading an existing spa or replacing a failed control pack, the IN.YT-7 delivers commercial-grade flexibility, robust electrical capacity, and long-term reliability suited to Australian conditions.

Gecko Aeware IN.YT-7 4.0kw Controller

$2,037.71

G-0611-221027-349

Quantity

Specifications

Availability:
In stock

Description

The Gecko Aeware IN.YT-7 4.0kW Controller is a powerful, highly flexible spa control system designed for demanding spa configurations commonly found in Australian homes. Built on the proven Aeware platform and sharing core architecture with the in.xe series, the IN.YT-7 stands out by using industry-standard AMP plug connections, making it an ideal replacement for many Balboa spa packs—often without the need to rewire pumps or replumb pipework.

Supplied with a high-capacity 4.0kW in-line heater, this controller supports a wide range of pump, blower, lighting, ozone, circulation, and audio combinations. Whether you’re upgrading an existing spa or replacing a failed control pack, the IN.YT-7 delivers commercial-grade flexibility, robust electrical capacity, and long-term reliability suited to Australian conditions.

Gecko Aeware IN.YT-7 4.0kw Controller

$2,037.71

Product Information

Property	Details
Brand	Gecko
Specifications	Specifications Controller Type: Universal spa control system (spa pack only – no touchpad) Heater Output: 4.0 kW Number of Outputs: Up to 7 configurable outputs Heater Construction: In-line stainless steel heater 15″ long × 2″ diameter Supplied with unions Voltage Options: 230 V, 50 Hz, single phase (20 A–40 A max) 415 V, 50 Hz, two phase (20 A max) 415 V, 50 Hz, three phase (16 A max) Dimensions (W × H × D): 420 mm × 370 mm × 115 mm Technical Details Output Configuration (Example): Output 1: Pump Output 2: Pump or blower Output 3: Blower or circulation pump Output 4: Ozone Output 5: 230 V supply for audio system / auxiliary Additional outputs configurable depending on setup Pump Capacity: Supports 1–4 pumps plus circulation pump Supports up to 5 jet pumps only when all are single speed Maximum Current Draw: Any individual pump: 15 A max Pump 1 + ozone + circulation (combined): 15 A Pump 2 & 3 / blower (combined): 20 A Pump 4: 15 A Connections: AMP plug sockets on circuit board sides Optional direct wiring via relays using 6.3 mm female spade connectors Ingress Protection: Incoming power via left-side entry only (32 mm conduit/gland required to maintain seal)
Functionality	The Gecko IN.YT-7 acts as the central control hub for complex spa systems, managing heating, pump operation, filtration, lighting, and optional accessories. Its universal design allows installers to configure multiple equipment combinations, making it suitable for both standard and feature-rich spas. Thanks to the AMP plug architecture, compatible pumps and accessories can be connected quickly and securely, significantly reducing installation time. The powerful 4.0kW heater ensures fast heat-up times and consistent temperature control—ideal for frequent spa use and cooler Australian evenings. Instructions & Installation Notes Supplied as spa pack only (touchpad not included) Designed for portable residential spas Ideal replacement for Balboa systems using standard AMP-style cords Important compatibility note: Over-moulded AMP plugs used with Spaquip, Davey, or SpaNet controllers cannot be used due to space limitations These must be replaced with single-insulated USA-style AMP plugs or 6.3 mm spade-terminated cables Incoming power must enter via the left-side 32 mm conduit opening Installation must be carried out by a qualified spa technician or licensed electrician Always verify pump count, pump speed, and current draw before installation
Key Features	Integrated 4.0kW stainless steel heater for rapid heating Up to 7 configurable outputs for advanced spa setups AMP plug design ideal for Balboa replacements Supports pumps, blower, circulation pump, ozone, lighting, and audio Flexible single, two, or three-phase power options Compact yet powerful control pack design Built for long-term reliability in Australian spa environments Engineered by Gecko Alliance
Documentation	Installation & Use Considerations Installation must be completed by a licensed electrician or qualified spa technician to comply with Australian electrical regulations. The controller should be mounted in a dry, sheltered space with adequate ventilation and easy access for maintenance and connection to spa components. During routine use, operators should monitor spa temperature, pump operation, and programmed settings. Ensuring proper keypad pairing and system calibration will maximise performance, energy efficiency, and equipment lifespan. Why It’s a Good Choice The Gecko Aeware IN.YT-7 4.0 kW Controller is an excellent choice for Australian spa owners seeking a robust, high-capacity control solution. With its powerful heater, versatile output options, and seamless compatibility with modern Aeware accessories, it delivers exceptional performance for larger or more demanding spa setups. Offering superior automation, reliable temperature control, and long-term durability, the IN.YT-7 makes managing complex spa systems effortless. It’s a smart, future-ready investment for homeowners and commercial operators who want consistent comfort, outstanding efficiency, and professional-grade reliability.
