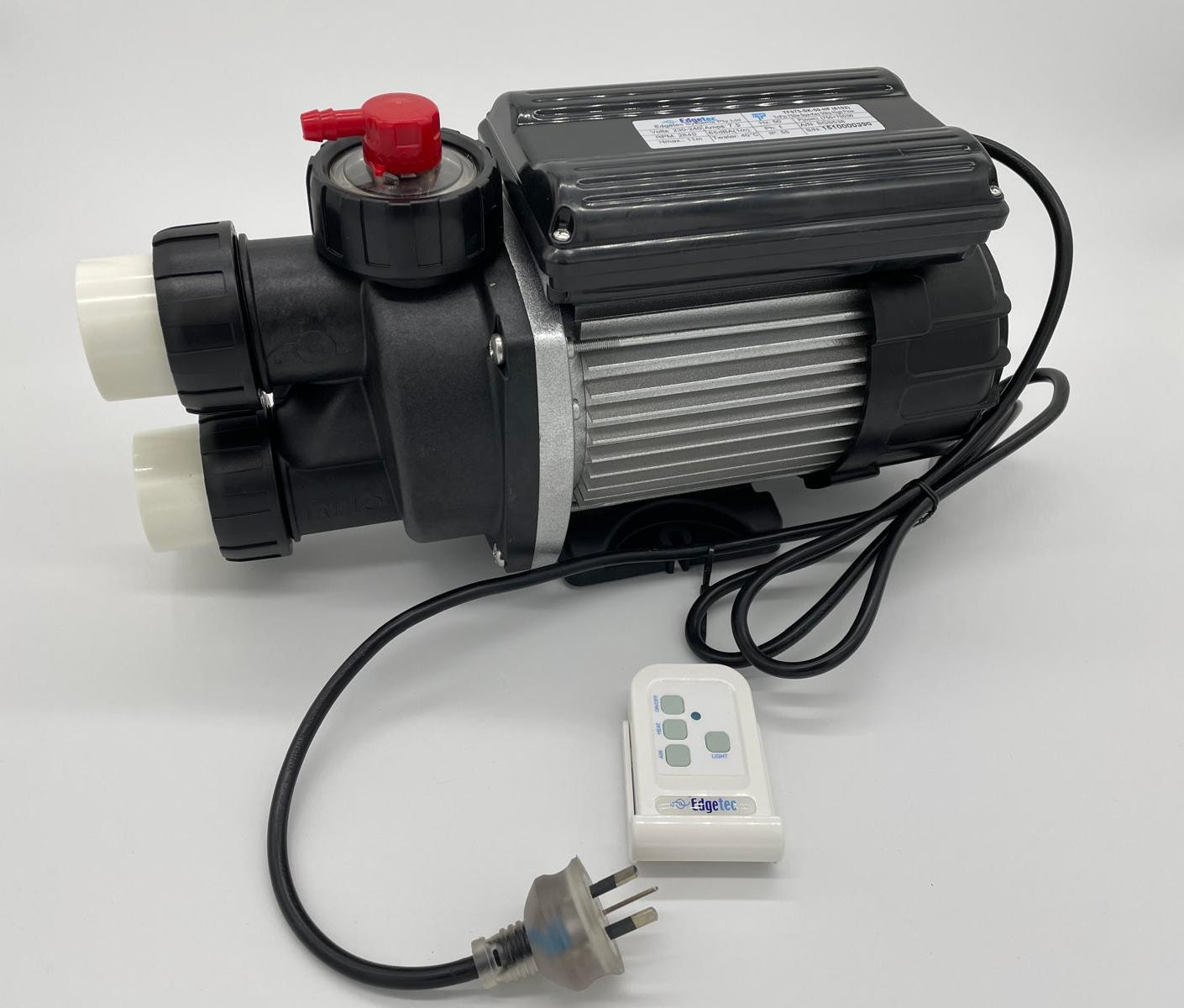

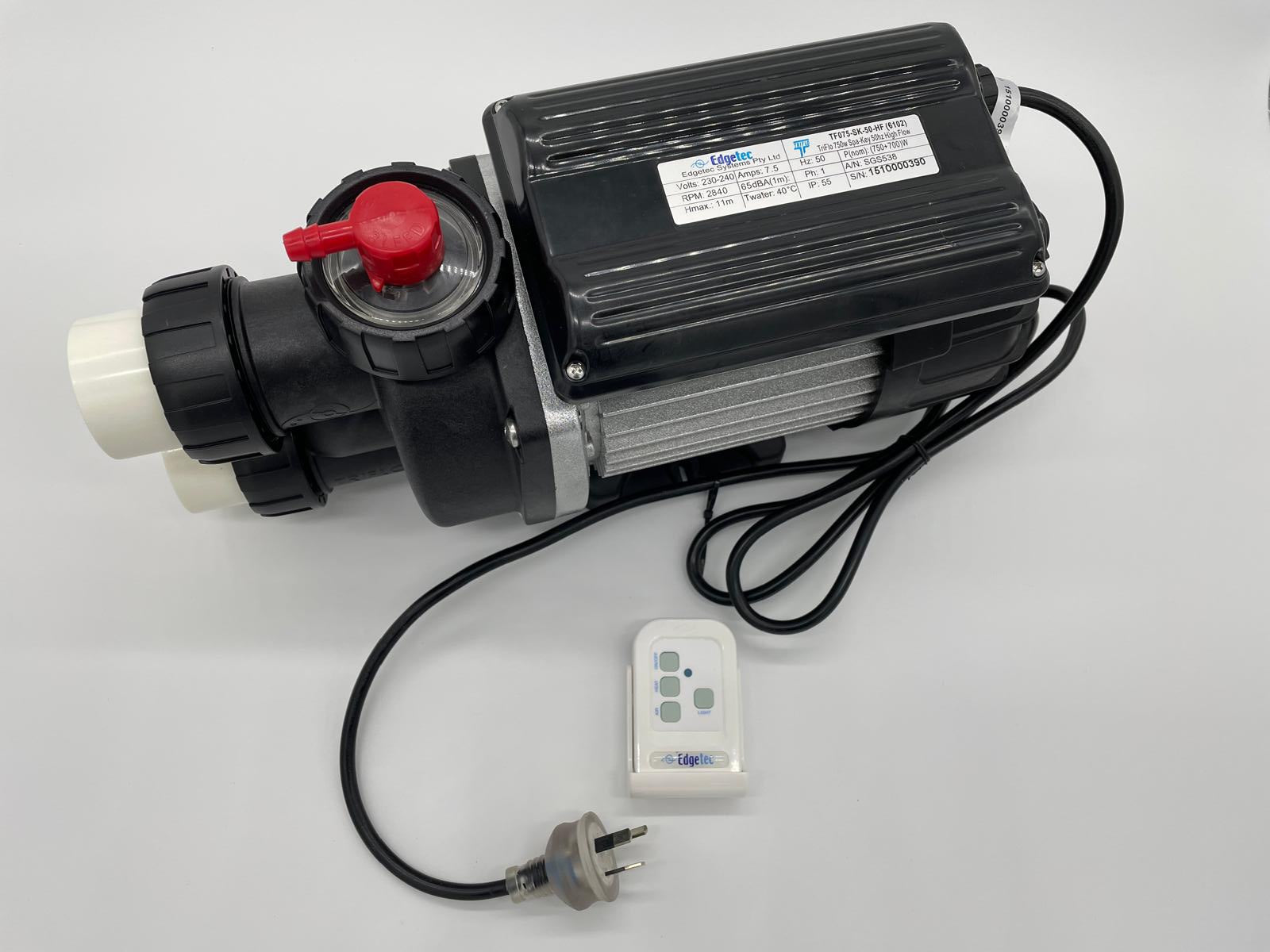

The Edgetec ED6102 TriFlo Spa‑Key 1.0HP Heated Spa Bath Pump is a modern, high‑quality solution designed for indoor spa baths and whirlpool baths. It combines efficient water circulation with an integrated stainless‑steel heater and a wireless remote control system, making it ideal for new installations and retrofit replacements.

This pump removes the need for traditional air buttons or wall‑mounted touchpads, making it especially suitable where existing control cables are inaccessible. The Spa‑Key waterproof remote allows easy operation of both the pump and heater from up to 6 metres away, even through walls or cabinetry.

Featuring a TriFlo multi‑port discharge design, the ED6102 offers flexible plumbing options including top, front, or dual outlet configurations. The self‑draining pump casing helps prevent stagnant water buildup when the bath is emptied, assisting compliance with Australian spa bath health standards.

Quiet, reliable, and compact, the Edgetec ED6102 is commonly used as a replacement for discontinued Onga, Balboa, and Davey spa bath pumps in residential bathrooms.

This pump is designed for indoor spa bath use only and is not suitable for spa pools or permanently filled spas.

Technical Specifications

General

• Model: ED6102 / E‑6102
• Series: Edgetec TriFlo Spa‑Key
• Application: Indoor spa bath / whirlpool bath
• Operation: Single‑speed, heated

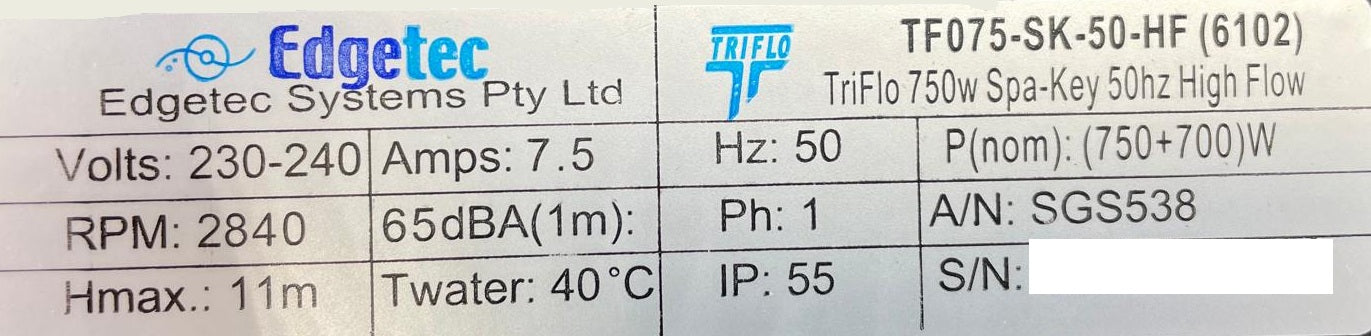

Electrical

• Supply Voltage: 230–240 V AC
• Motor Output: 750 W
• Integrated Heater: 700 W stainless‑steel element
• Total Current Draw: Approx. 7.5 A
• IP Rating: IP55
• Plug Type: C38
• Power Lead Length: Approx. 1.8 m

Hydraulic & Plumbing

• Motor Size: 1.0 HP
• Union Size: 40 mm (48 mm OD)
• Jet Capacity: Typically 4–6 spa bath jets
• Discharge Options:
  • Front discharge
  • Top discharge
  • Dual outlet configuration
• Air Bleed: Manual air‑bleed valve with O‑ring seal

Control System

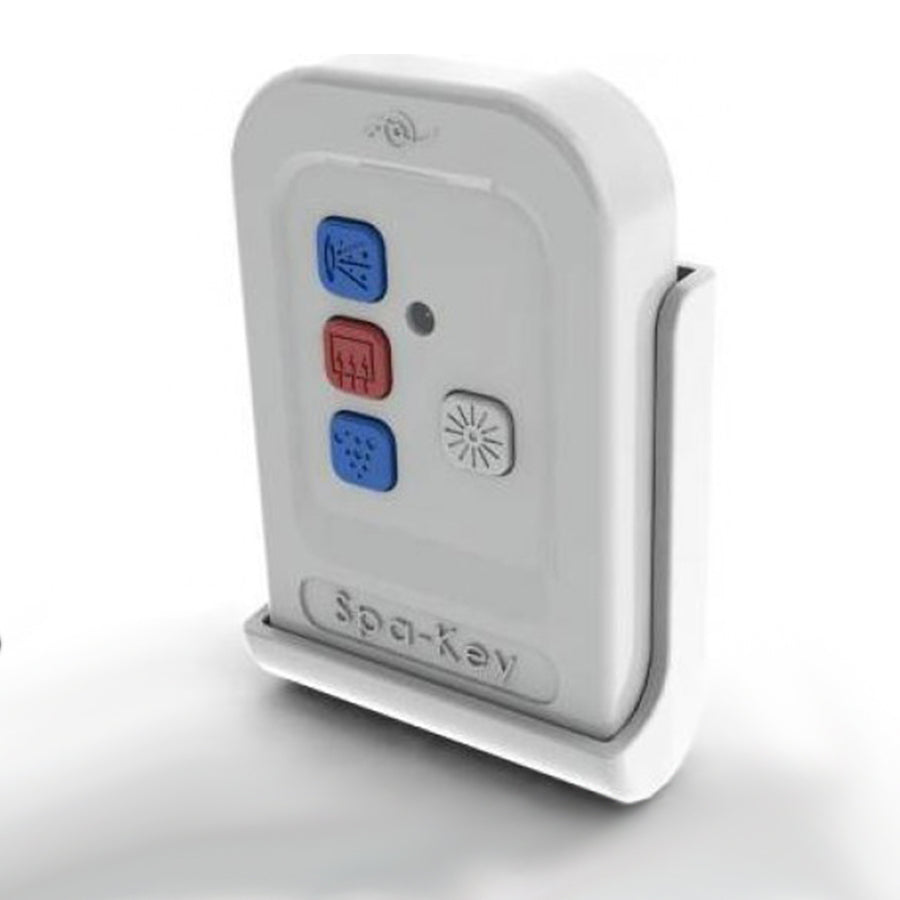

• Control Type: Wireless Spa‑Key remote
• Remote Features:
  • Waterproof 4‑button handset
  • Controls pump and heater
  • Operating range up to 6 m

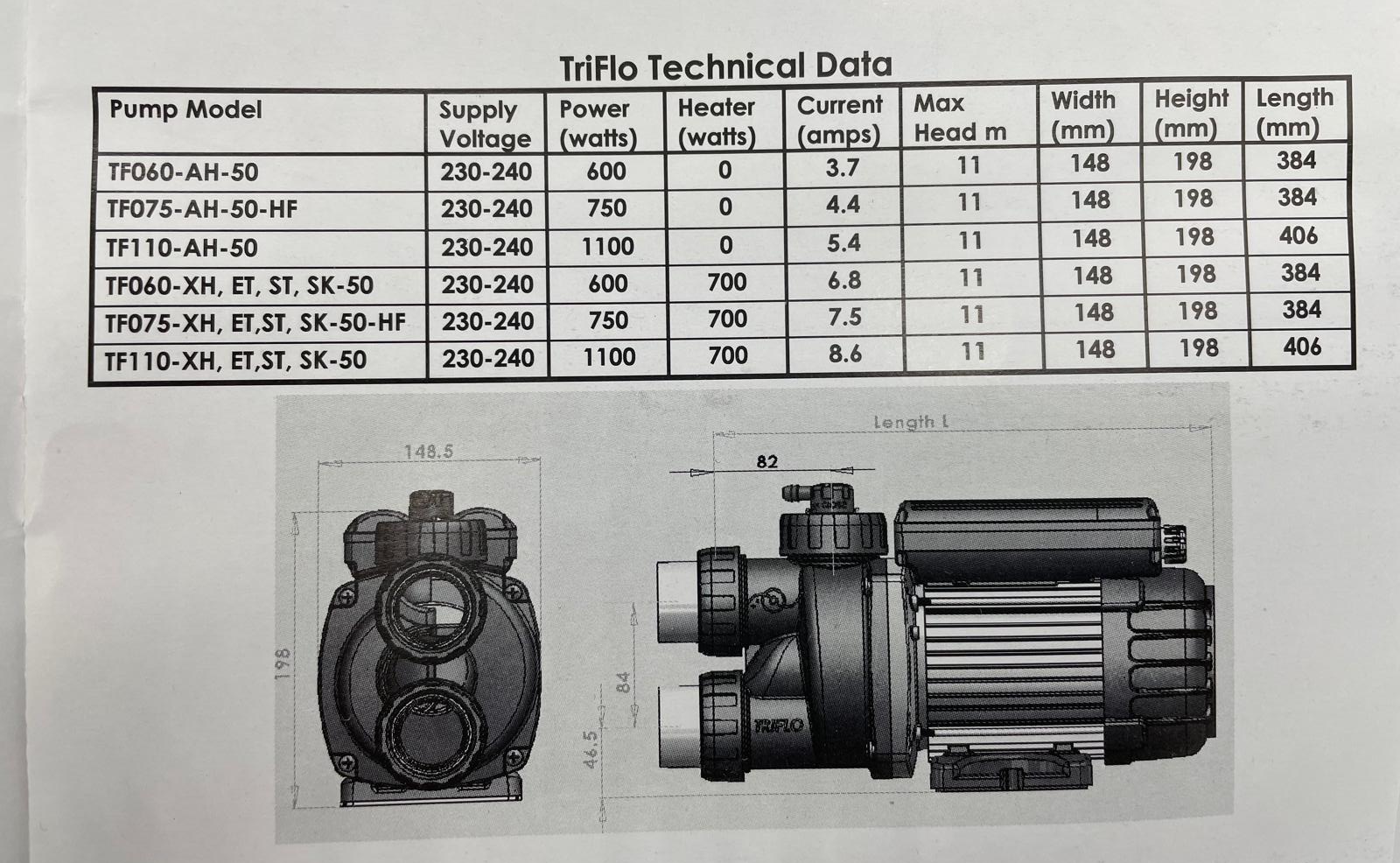

Physical Dimensions

• Length: Approx. 384 mm
• Width: Approx. 148 mm
• Height: Approx. 198 mm
• Weight: Approx. 10 kg

Installation & Warranty

• Installation: Must be performed by a licensed electrician or spa technician
• Warranty: 12 months (manufacturer’s warranty)
