Product Description
This 40µF 450V Capacitor Kit is the correct replacement for the Gecko Maelstrom MS‑1 2.5HP CE 2‑Speed pump, part number 0800‑500014.
A worn or failing capacitor can cause symptoms such as weak startup, humming, low torque, or overheating. Replacing it restores full pump performance and ensures stable operation.

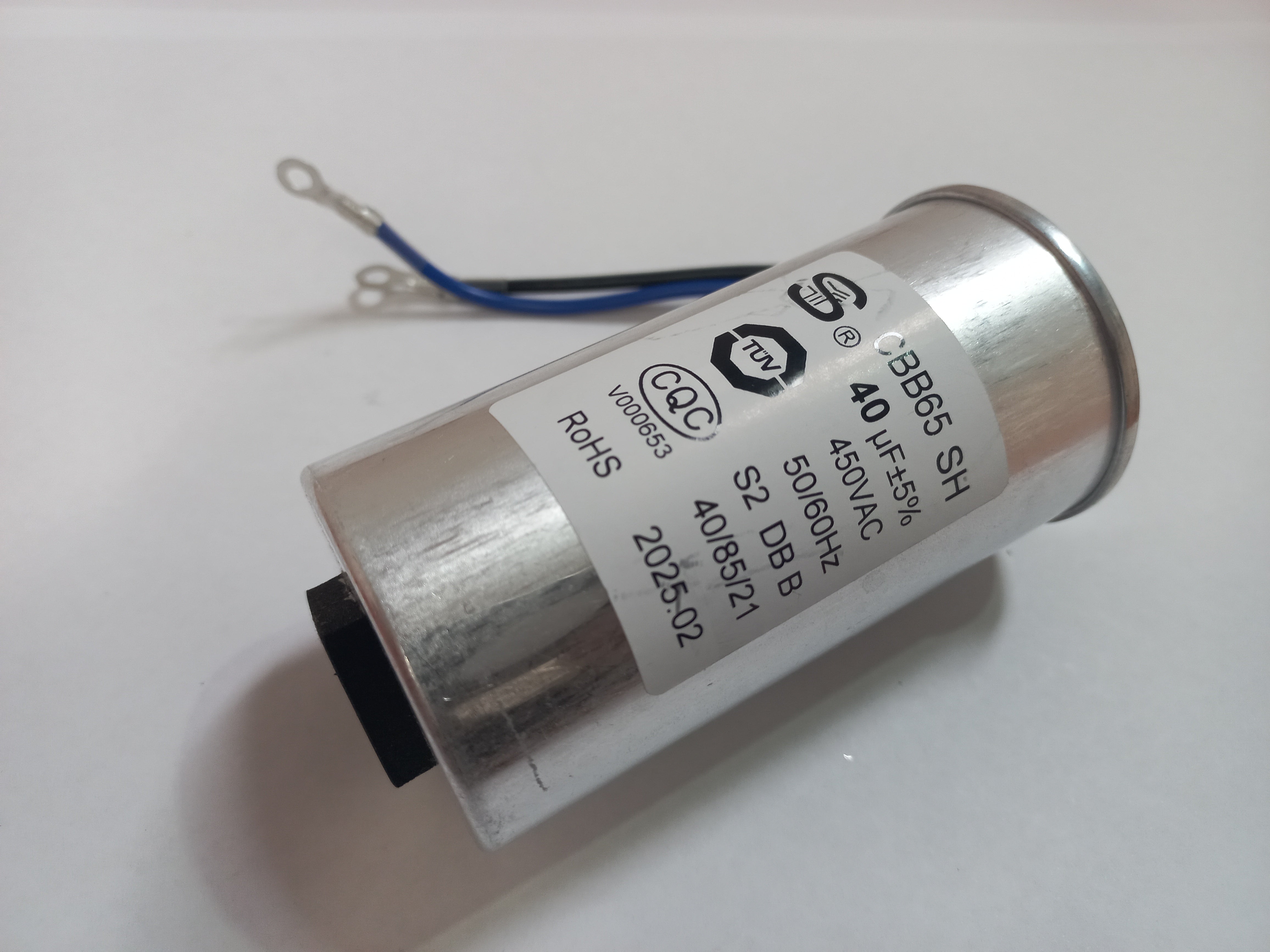

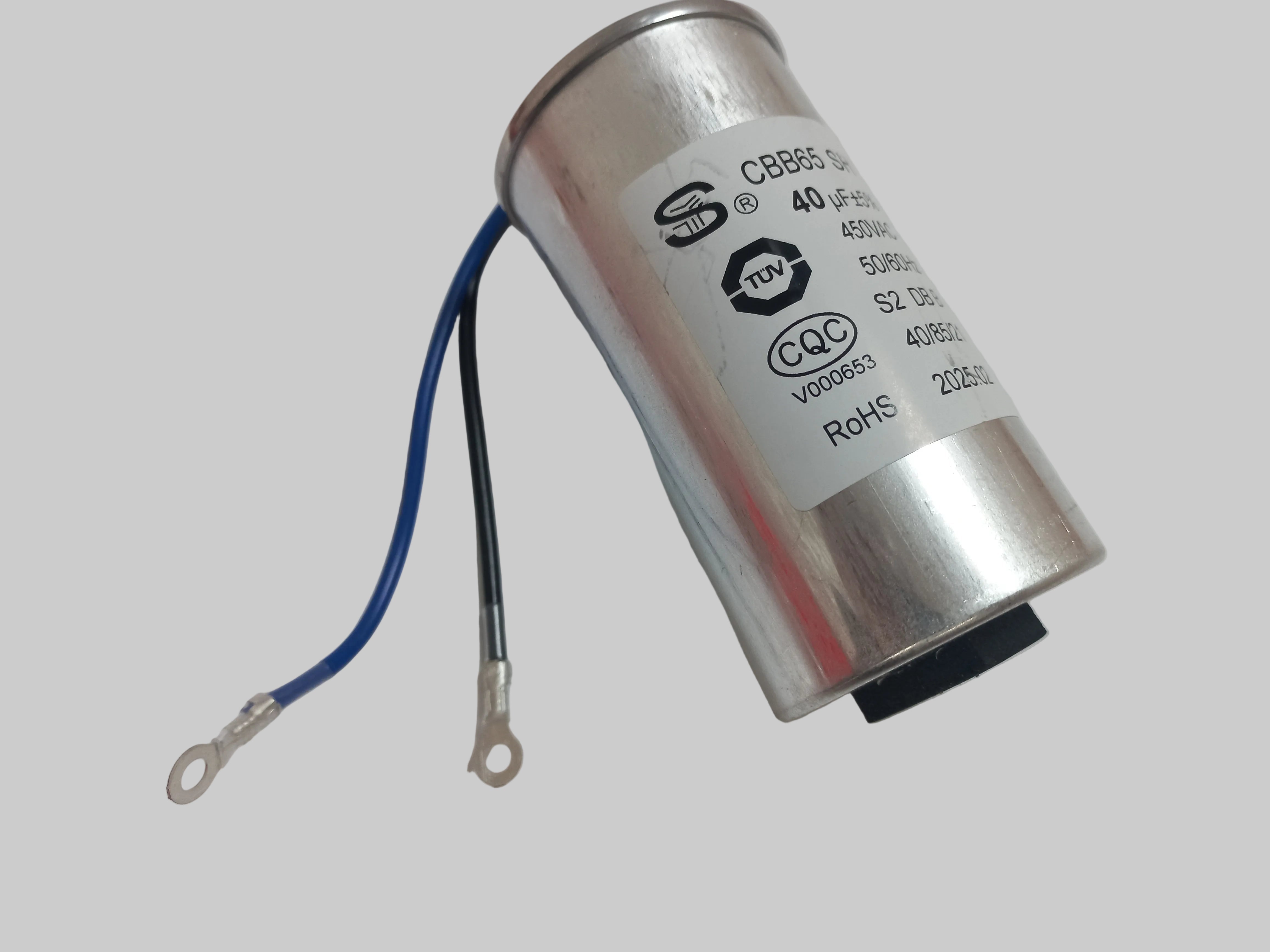

This capacitor is a CBB65 SH aluminium motor‑run design, offering excellent heat dissipation and long service life — ideal for demanding spa and hot‑tub pump applications.
Technical Specifications
- Capacitance: 40 µF ± 5%
- Voltage Rating: 450 VAC
- Frequency: 50/60 Hz
- Construction: Aluminium canister
- Type: CBB65 SH (motor‑run)
- Leads: 1 × blue wire + 1 × black wire, both with ring terminals
- Certifications: TUV, QC, RoHS, CE‑style safety markings
- Marking Code: S2 DBB / 40B521
- Manufacture Date: 2025‑02
Compatible With
- Gecko Maelstrom MS‑1 (2.5 HP, CE version)
- 2‑Speed Gecko Maelstrom pumps requiring 40µF run capacitor
- Direct replacement for 0800‑500014
When to Replace
- Pump hums but doesn’t start
- Low power or slow startup
- Pump overheats
- Inconsistent or weak water flow
Replacing the capacitor is an inexpensive and effective repair to restore normal pump behaviour.
