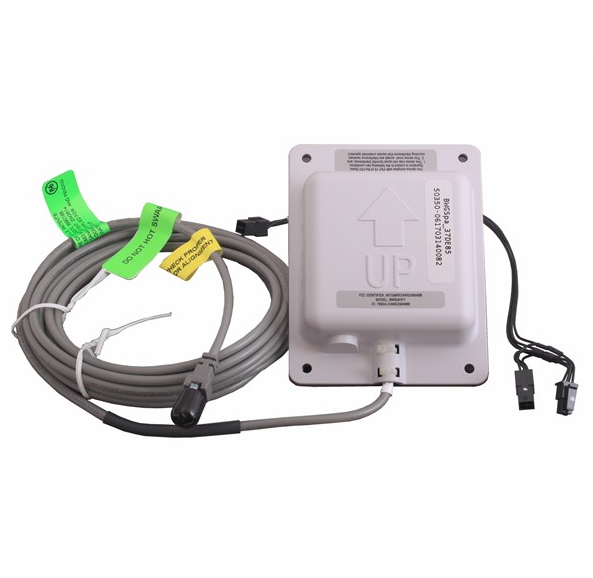

The Balboa WiFi Module (Ref: 50350) allows seamless remote control of your spa using the Balboa BWA app. Designed for BP‑series spa packs, this module lets you adjust temperature, pumps, lighting, and filtration from your smartphone or tablet.
Compatibility – Supported Balboa Spa Packs
This module works with the following Balboa electronic control systems:
- BP500 / BP600*
- BP501 / BP601
- BP1500 / BP1600
- BP2000 / BP2100
- BP2500 / BP2600
- Revolution*
- Colossus
- Viper
(*model variations may apply)
Wi‑Fi Requirements
- Requires a 2.4GHz home Wi‑Fi network
- Not compatible with 5GHz networks
- Supports Open, WEP, WPA, WPA2 security
- Strong signal recommended (–50 dBm or better) for stable operation
Installation Details
The Balboa 50350 WiFi module is normally mounted inside the spa cabinet, ideally on the side facing your home router for best reception.
Some installations may require the optional
"Adaptor Y Cable – 6 Pin Molex for WiFi"
if your spa pack does not have a second keypad socket.
Setup is completed through the BWA app, where the module is connected to your home Wi‑Fi and linked to the spa control system.
Instruction Manual: https://cdn-support.beauty-luxury.com/documents/manual/cff1ed1e-8504-49a8-85f6-516de74459b0.pdf
