Description

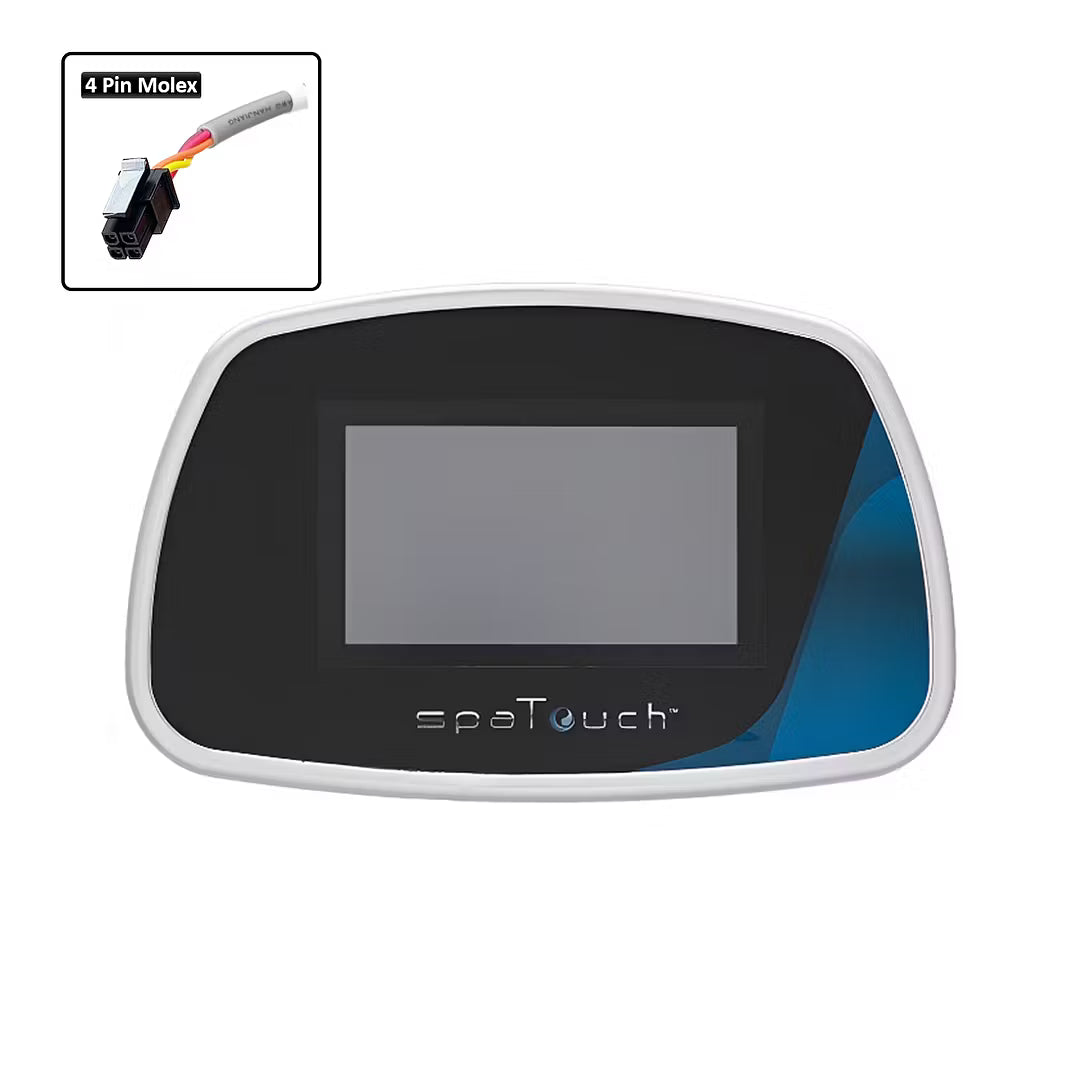

The Balboa SpaTouch 2 is a touch-sensitive screen that replaces a conventional hot tub keypad.
Compatible with all BP systems that already support the TP800 and/or the TP900: BP200 G1, G2 and G3, BP200 UX, BP600, BP601 3G1, 3G2 and 3G3, and BP2100 G1, G2 and G3.

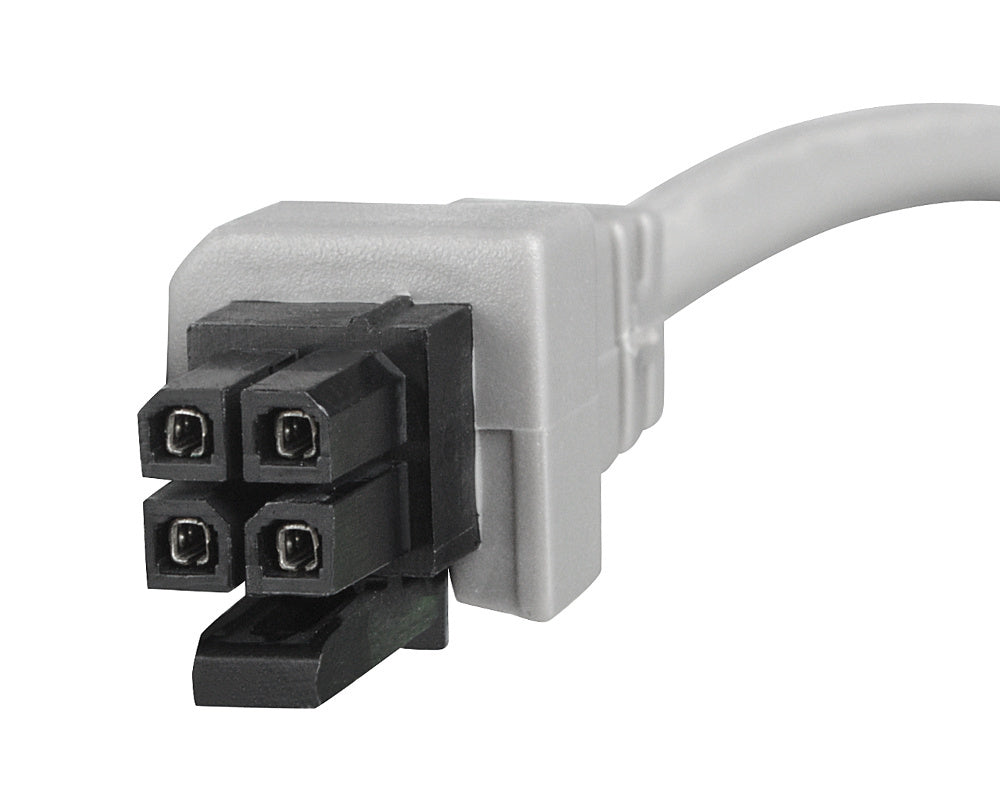

The large user friendly digital face screen, with access to all equipment allows you to control your hot tub with ease. The main screen also indicates important information about spa operation including temperature, adjustments, ozone, filter and pump status, messages and alerts. It has a stylish design and a 4 pin connection.
Instruction Sheet: https://www.balboawater.com/wp-content/uploads/2024/08/42281A_SpaTouch2%E2%84%A2-User-Guide.pdf
Dimensions
Keypad: 198 x 124 mm
Cut out area : 119 x 89 mm
Warranty
1-year Parts warranty
Part numbers
Balboa: 57324-02 (with overlay)
This model replaces the SpaTouch 1, part number 50585
Note that there 2 ways to unlock to SpaTouch depending on the Touchpad versions.
Here the link for the instruction for the First Version.
https://www.youtube.com/watch?v=IaiBvTm8U6w&t=50s
The second version is that you need to press in the middle on the screen for 5 seconds to unlock the touchpad.
Here the link for the instruction for Second versions.
