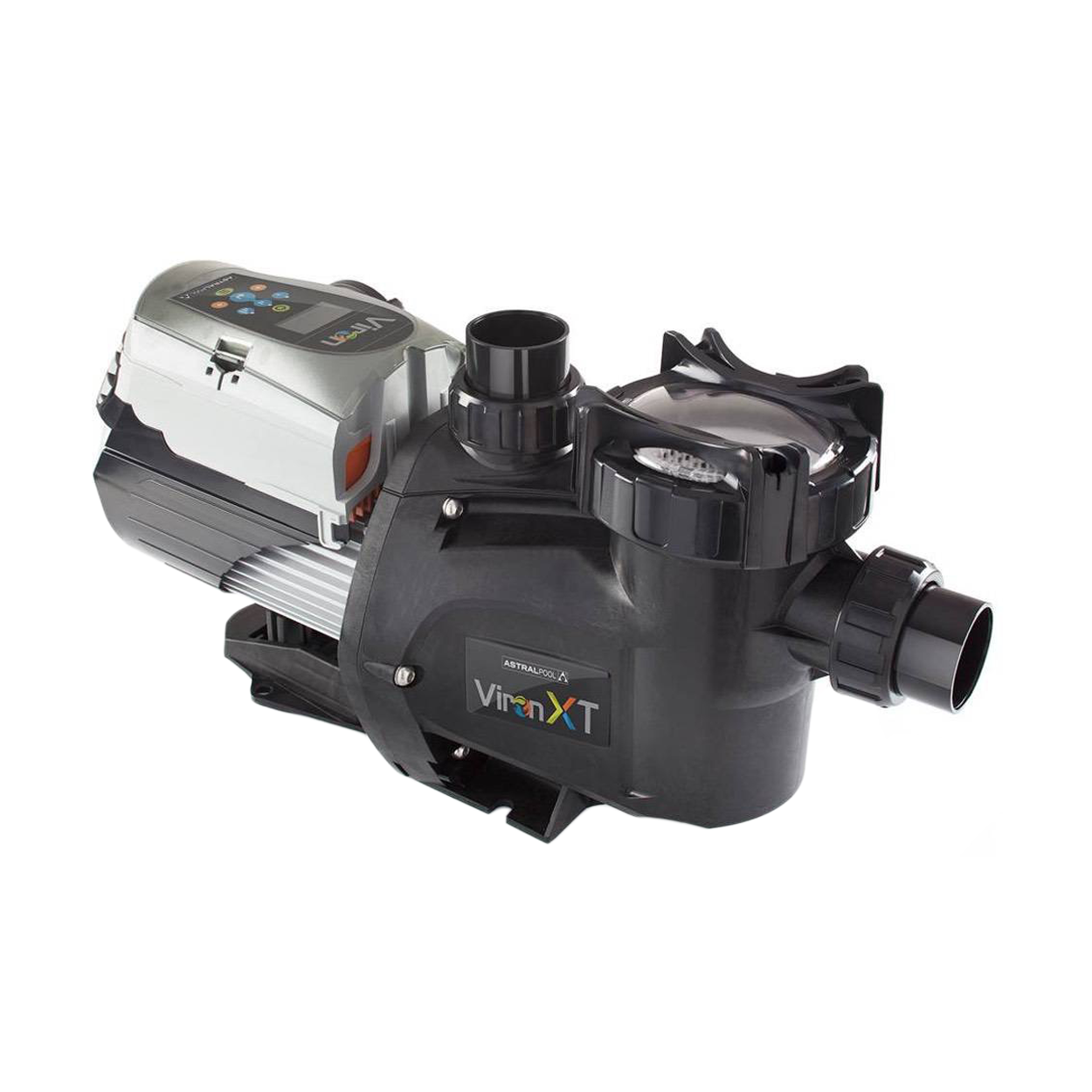

Astral Viron XT P520C – Once Sold Out This Product Will No Longer Be Stocked – CALL FOR REPLACEMENT OPTIONS
Description

The Astral Viron XT P520C is a premium variable speed pool pump engineered to deliver outstanding performance, exceptional energy efficiency, and uncompromised reliability for residential and commercial pool applications. Designed and manufactured to meet the demands of modern pool systems, the Viron XT P520C enhances circulation, filtration, and specialised functions such as spa jets, backwashing and in-floor cleaning — all while significantly reducing running costs and environmental impact.

Pump Specifications
Wattage: 1800
Speed: Variable
Union Size: 40/50mm
Lead Length: 2m
Plug Type: C38

Dimensions
Length: 646mm
Width: 252mm
Height: 338mm
Weight: 17kg

Warranty
Residential: 3 years (2 years on mechanical seal)
Commercial: 1 year

Astral Viron XT P520C – Once Sold Out This Product Will No Longer Be Stocked – CALL FOR REPLACEMENT OPTIONS

Regular price $2,924.61

AP-11548

Specifications
  • Availability:
    In stock

The Astral Viron XT P520C is a premium variable speed pool pump engineered to deliver outstanding performance, exceptional energy efficiency, and uncompromised reliability for residential and commercial pool applications. Designed and manufactured to meet the demands of modern pool systems, the Viron XT P520C enhances circulation, filtration, and specialised functions such as spa jets, backwashing and in-floor cleaning — all while significantly reducing running costs and environmental impact.

Pump Specifications
Wattage: 1800
Speed: Variable
Union Size: 40/50mm
Lead Length: 2m
Plug Type: C38

Dimensions
Length: 646mm
Width: 252mm
Height: 338mm
Weight: 17kg

Warranty
Residential: 3 years (2 years on mechanical seal)
Commercial: 1 year

Astral Viron XT P520C – Once Sold Out This Product Will No Longer Be Stocked – CALL FOR REPLACEMENT OPTIONS
Regular price $2,924.61

Product Information

Property Details
Brand AstralPool
Specifications Technical Details

Model: Astral Viron XT P520C
Motor Type: Variable-speed electric motor
Power Rating: ~1800 Watts / ~2.0 HP class
Voltage: 220–240 V, single phase
Speed Range: Adjustable from approximately 600 RPM to 3600 RPM
Flow Rate (Max): Up to ~580 L/min @ 8 m head
Energy Consumption: ~734 kWh/year (P520 XT class)
Energy Rating: 4.5 Star MEPS
Noise Level: Ultra-quiet operation (~63 dBA)
Connections: 50/65 mm unions
Warranty: 3-year comprehensive warranty
Construction: Durable engineering plastics, 316 stainless steel hardware, premium seals
Control: Integrated LCD control panel with in-built timer and Bluetooth compatibility for external control systems.
Functionality

The Astral Viron XT P520C is a variable speed pool pump that allows precise control of water circulation tailored to your pool’s needs. Unlike single-speed units, which run at full power continuously, the Viron XT P520C lets you select the optimal speed for daily circulation, filtration, cleaning or high-demand tasks. This adaptive operation delivers:

Full water circulation with energy-efficient low speeds

High flow and pressure for pool cleaning, spa jets or backwashing

Programmable speed schedules for different times of the day

Quiet, reliable operation that reduces vibration and noise pollution.
Key Features

Energy-Efficient Performance
With its advanced variable speed technology, this pump can save up to 90 % in energy use compared with traditional single-speed pumps, contributing to lower electricity bills and reduced greenhouse gas emissions.

Programmable Control & Timer
The integrated LCD control panel includes customisable speed settings and a 24-hour timer with multiple periods, allowing automatic adjustment to suit daily or seasonal pool use.

Overdrive and Fast-Prime Modes
Overdrive mode provides high flow and pressure when needed, while the Fast-Prime feature accelerates the priming process, reducing air in the system and minimising wear on components.

Quiet, Low-Maintenance Operation
Engineered for low noise at all operating speeds, the P520C maintains a serene pool environment. The large, transparent strainer basket simplifies maintenance and debris removal.

Durable Construction
Built with corrosion-resistant materials suitable for Australian conditions, including heavy-duty engineering plastics and 316 stainless steel hardware, this model is designed for long-term reliability.

Bluetooth Compatibility
Bluetooth capability allows easy integration with pool automation and control systems (such as Halo Chlor), enabling enhanced monitoring and remote adjustment.
Documentation Installation / Use Considerations

Professional Installation Recommended: To ensure optimal performance, electrical safety and system compatibility, installation by a qualified pool technician is strongly recommended.

Correct Siting: Mount the pump on a stable, vibration-free base with adequate ventilation and clearances.

Priming Required: Prior to operation, ensure the strainer basket and pump wet end are fully primed with water.

Electrical Compliance: Installation must comply with local electrical codes and should include appropriate isolation switches and circuit protection.

Maintenance: Regularly inspect and clean the strainer basket, check seals and O-rings, and verify that speed settings are correctly programmed for seasonal usage.

Compatibility: Suitable for chlorinated, saltwater and chemically treated pool environments due to its corrosion-resistant design.
