NOW Obsolete, replace by the TP700 Balboa-57279
https://www.spapartsonline.com.au/products/balboa-tp700-keypad-57279?_pos=2&_sid=a1a265665&_ss=r
Description

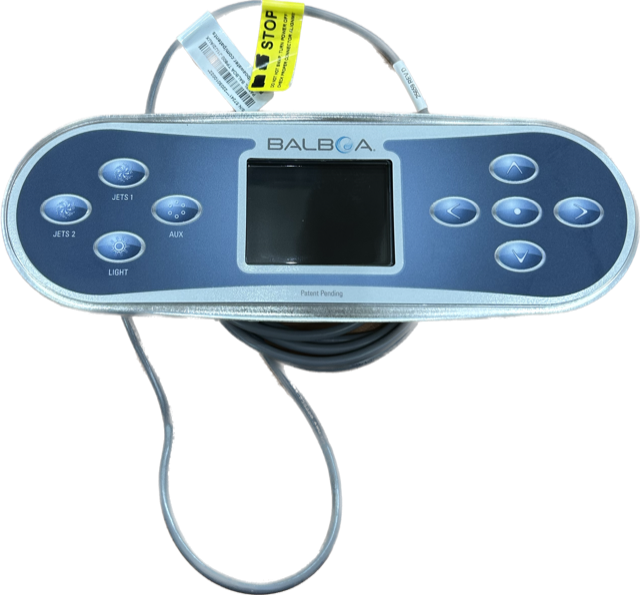

Balboa TP800 Touchpad and Overlay.
Compatible with BP systems. Consult the tech sheet of a specific BP system to ensure correct functionality of this touchpad.
Supports the advanced functions of BP controls that use Balboa’s patented M7 temperature and flow sensor technology.
Comes with 4 pin Molex connector.
For user guide and cut-out template:
https://www.balboawatergroup.com/Topside-Panels
Specifications
Touchpad Dimensions
Face Size –
Length: 254mm
Width: 89mm
Depth: 20mm
Hole Size –
*Requires 2.5” Hole Saw, see cut-out template.
Touchpad Lead Length: 3.0m
