Technical Specifications Specification

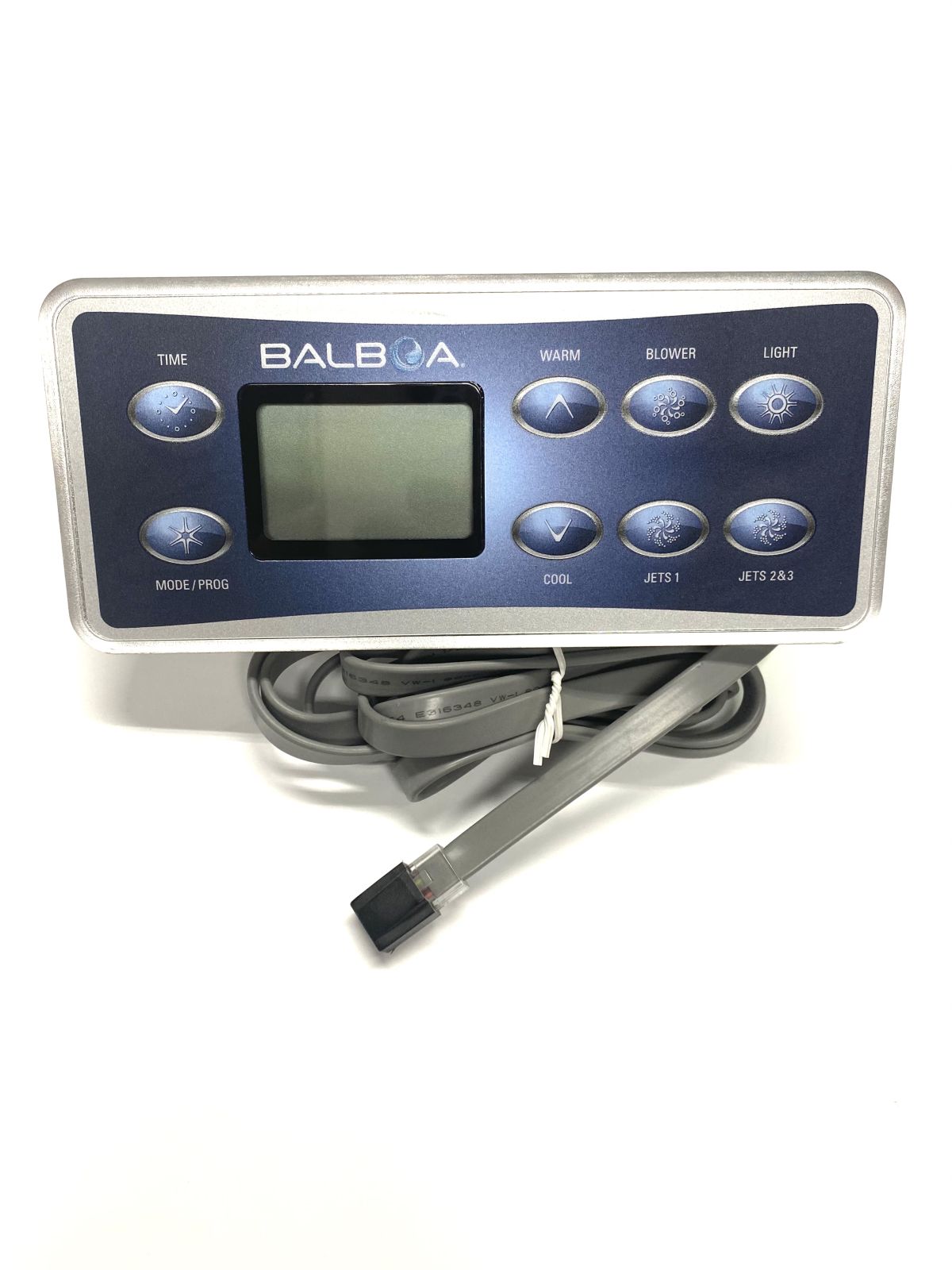

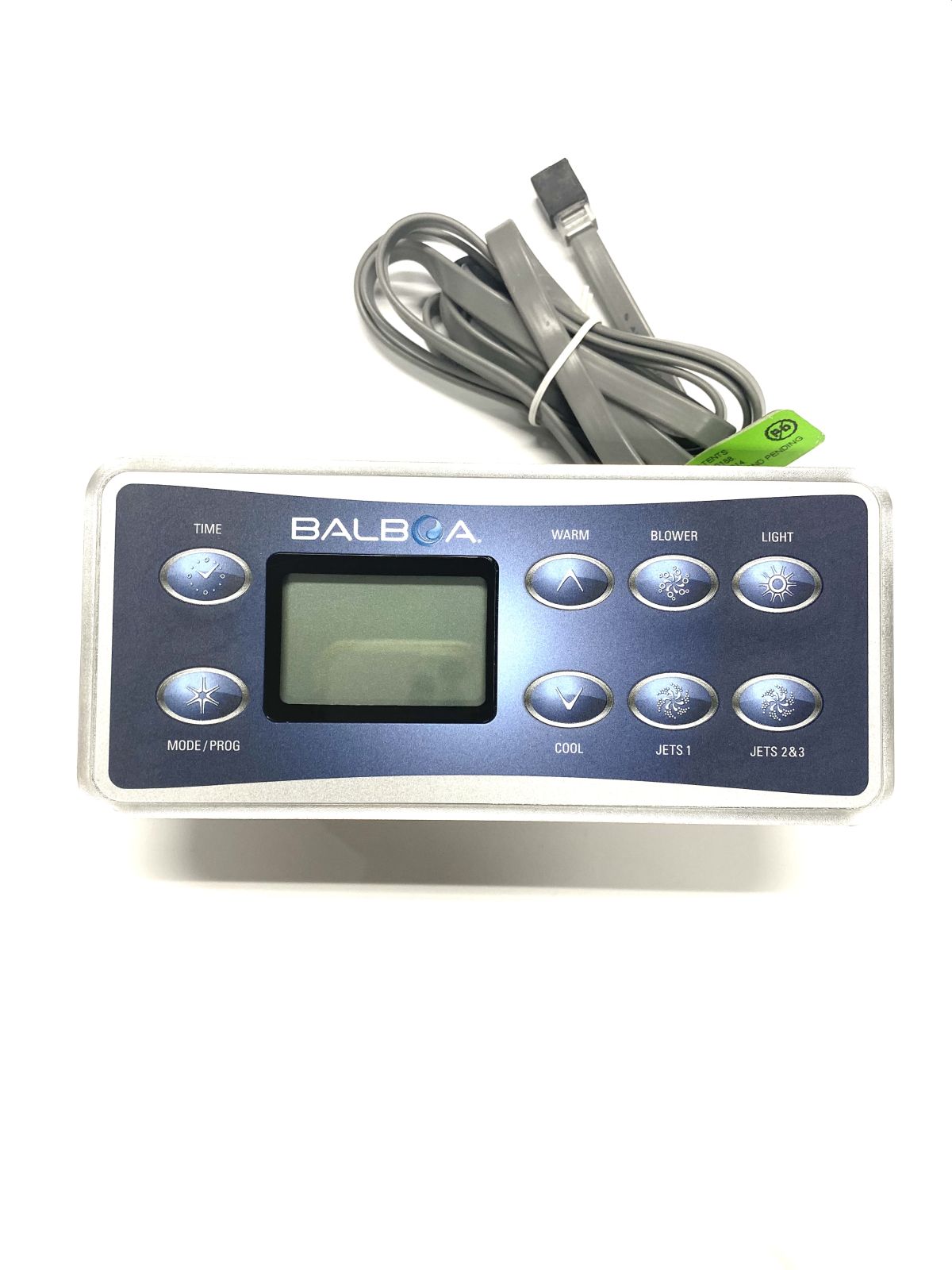

Detail Model Number    VL801D

Part Number    54121 (also 54121-01)

Manufacturer    Balboa Water Group Panel

Dimensions    7.4″ x 3.3″ (188 mm x 84 mm)

Hole/Cutout Size Required    Approximately 162 mm x 58 mm (varies slightly by source) Display Type    LCD (Liquid Crystal Display)

Button Count    8 Connection Type    8-Pin Phone Plug (RJ45 style ethernet network cabling plug)

Cable Length    7 feet (approx. 2 meters) Overlay

System Compatibility    Balboa Serial Deluxe Control Systems with codes ending in DZ (e.g., GS501DZ, GS510DZ, GS520DZ, GS523DZ)

Button Functions (typical overlay layout)

The specific functions depend on the overlay used, but typically include: •    Time/Mode (left side of display) •    Warm/Cool (temperature control) •    Blower •    Light •    Jets 1 (Pump 1) •    Jets 2 (Pump 2
