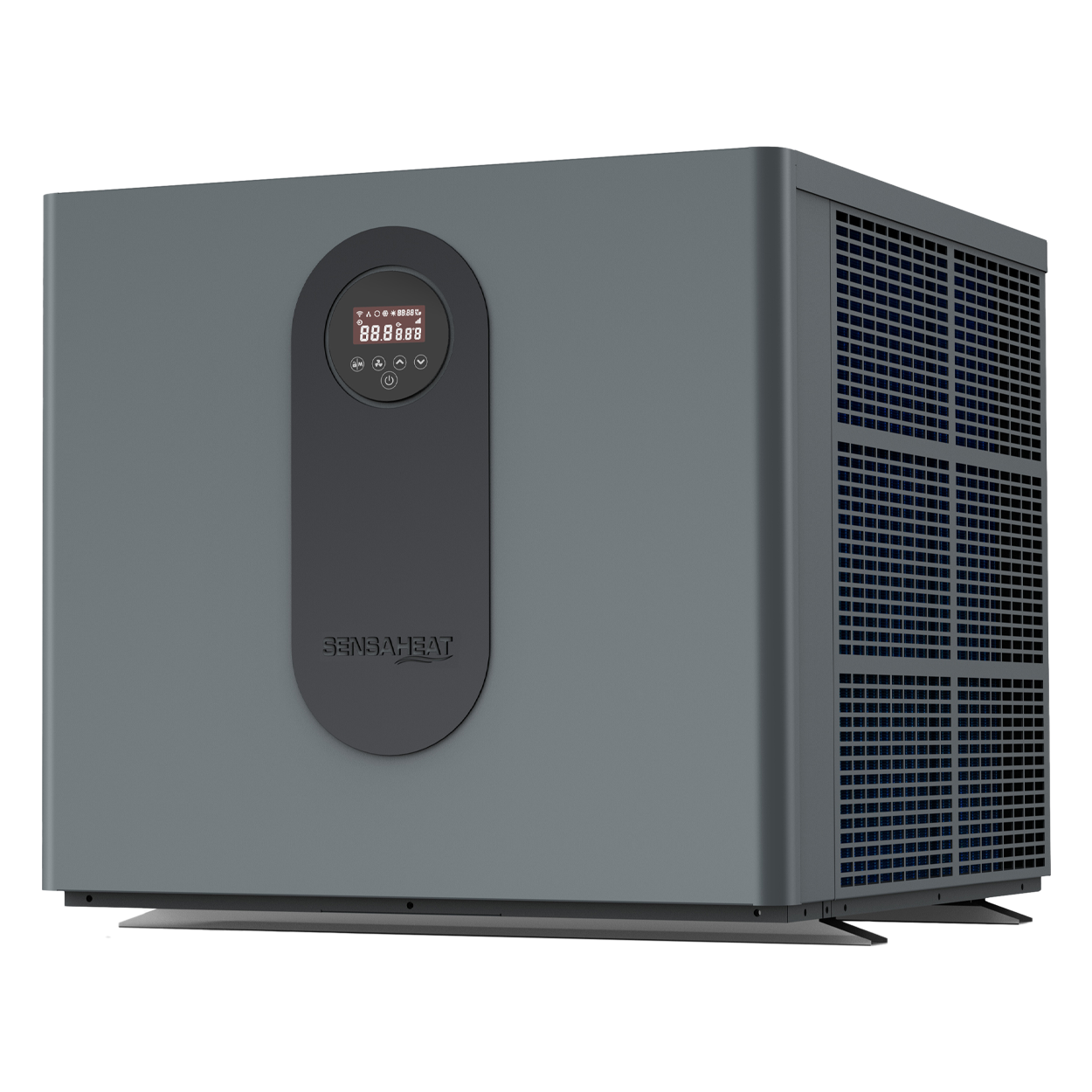

Sensapool TDX Series Top Discharge Heat Pump - 22kw
Description

Compact, powerful and designed with Australian homes in mind, the Sensaheat TDX Series 22kW Top Discharge Heat Pump is the ideal solution for pool owners who want efficient heating without sacrificing backyard space. Engineered for faster heat-up times and flexible installation, this unit fits effortlessly into tight equipment areas, side yards and modern pool layouts.

Drawing on all the advanced technology of the PI Series, the TDX range introduces a smart top discharge fan that releases air vertically, allowing the unit to be positioned closer to walls or fences. Combined with inverter efficiency, ultra-quiet operation and Wi-Fi control as standard, the 22kW TDX delivers premium performance for small to medium residential pools while keeping energy costs under control.

Sensapool TDX Series Top Discharge Heat Pump - 22kw

Regular price $8,309.11

SP-HPTDX22

Specifications
  • Availability:
    In stock

Compact, powerful and designed with Australian homes in mind, the Sensaheat TDX Series 22kW Top Discharge Heat Pump is the ideal solution for pool owners who want efficient heating without sacrificing backyard space. Engineered for faster heat-up times and flexible installation, this unit fits effortlessly into tight equipment areas, side yards and modern pool layouts.

Drawing on all the advanced technology of the PI Series, the TDX range introduces a smart top discharge fan that releases air vertically, allowing the unit to be positioned closer to walls or fences. Combined with inverter efficiency, ultra-quiet operation and Wi-Fi control as standard, the 22kW TDX delivers premium performance for small to medium residential pools while keeping energy costs under control.

Sensapool TDX Series Top Discharge Heat Pump - 22kw
Regular price $8,309.11

Product Information

Property Details
Brand Sensaheat
Specifications Performance Overview

Performance Condition: Air 27°C / Water 27°C / Humidity 80%

Heating Capacity: 22 kW

COP Range: 16.2 – 6.8

Average COP at 50% Speed: 12.2

Performance Condition: Air 15°C / Water 26°C / Humidity 70%

Heating Capacity: 15 kW

COP Range: 7.9 – 5.1

Average COP at 50% Speed: 6.9

Cooling Performance

Cooling Capacity: 8.2 kW (Air 15°C / Water 26°C / Humidity 70%)

Specifications & Technical Details

Reverse Cycle: Standard

Operating Air Temperature: 0°C to 43°C

Heating Temperature Range: 18°C to 40°C

Cooling Temperature Range: 12°C to 30°C

Refrigerant: R32 (Low GWP of 675 – approx. 30% of R410A)

Wi-Fi: Standard

Heat Exchanger: Twisted Titanium

Compressor: Mitsubishi DC Inverter

Electrical

Power Supply: 230V, Single Phase

Electrical Connection: Hard Wired

Rated Input Power: 0.32 – 2.94 kW

Rated Input Current: 1.39 – 12.78 A

Maximum Input Current: 18.5 A

Acoustics

Sound Level @ 1m: 41.2 – 51.3 dB(A)

Sound Level @ 10m: 22.3 – 31.3 dB(A)

Hydraulics

Advised Water Flow: 100 – 150 L/min

Water Connection: 40 mm

Dimensions & Weight

Net Weight: 77 kg

Dimensions (L × W × H): 710 × 775 × 693 mm

Installation Notes & Recommendations

The top discharge airflow design makes this model ideal for narrow or restricted installation areas.

Allow sufficient vertical clearance above the unit for unobstructed airflow.

Electrical connection must be completed by a licensed electrician.

Install on a solid, level base with adequate drainage.

Maintain the recommended water flow rate to ensure optimal efficiency and long-term reliability.

Professional installation is recommended to meet manufacturer guidelines and warranty conditions.
Functionality

The TDX Series uses advanced inverter technology to intelligently regulate output based on real-time pool conditions. This ensures rapid heating when required and quieter, energy-efficient operation once the desired temperature is reached.

With reverse-cycle , the system can both heat and cool pool water, making it ideal for year-round swimming in Australia’s changing climate. A simple touch screen controller and built-in Wi-Fi connectivity allow easy temperature control and monitoring, whether you’re at home or away. At its core, the Mitsubishi DC compressor provides smooth, reliable and long-lasting performance.
Key Features

Top Discharge Air Outlet – Allows installation closer to walls or fences

22kW Heating Capacity – Perfect for small to medium residential pools

Inverter Technology – Optimised efficiency and lower running costs

Super Quiet Operation – Designed for peaceful backyard environments

Reverse Cycle Heating & Cooling – Enjoy your pool in every season

Eco-Friendly R32 Refrigerant – Reduced environmental impact and improved efficiency

Touch Screen Controller – User-friendly and intuitive operation

Wi-Fi as Standard – Remote access and control

Twisted Titanium Heat Exchanger – Corrosion-resistant and built for longevity

Mitsubishi DC Compressor – Proven reliability and consistent performance

Flexible Size Options – Available from 11kW to 40kW
Documentation Warranty

Titanium Heat Exchanger: 25 Years

Compressor: 10 Years

Parts: 5 Years

On-Site Labour: 2 Years
