The Madimack InverElite V3 26.9kW Pool Heat Pump – Super Quiet with Wi-Fi is a high-performance heating solution designed for Australian households that demand power, efficiency and intelligent design. As part of the next-generation InverELITE V3 Series, this model has been completely re-engineered to deliver superior airflow, exceptional efficiency and whisper-quiet operation in a compact, modern unit.

Producing up to 26.9kW on single-phase power, the InverElite V3 is ideal for medium to large residential pools where space is limited but performance cannot be compromised. Built with marine-grade materials and advanced inverter technology, it is engineered to operate reliably in harsh Australian environments, including coastal and high-corrosion locations.

Madimack InverElite V3 26.9kW Pool Heat Pump Super Quiet WiFi

$11,312.40

Quantity

Specifications

Availability:
In stock

Description

The Madimack InverElite V3 26.9kW Pool Heat Pump – Super Quiet with Wi-Fi is a high-performance heating solution designed for Australian households that demand power, efficiency and intelligent design. As part of the next-generation InverELITE V3 Series, this model has been completely re-engineered to deliver superior airflow, exceptional efficiency and whisper-quiet operation in a compact, modern unit.

Producing up to 26.9kW on single-phase power, the InverElite V3 is ideal for medium to large residential pools where space is limited but performance cannot be compromised. Built with marine-grade materials and advanced inverter technology, it is engineered to operate reliably in harsh Australian environments, including coastal and high-corrosion locations.

Madimack InverElite V3 26.9kW Pool Heat Pump Super Quiet WiFi

$11,312.40

Product Information

Property	Details
Specifications	Technical Details Performance Specifications Model: ESV3-270 Performance Condition – Air 27°C / Water 27°C / Humidity 80% Heating capacity: 26.9kW COP range: 16.1 – 7.3 Performance Condition – Air 15°C / Water 26°C / Humidity 70% Heating capacity: 18.0kW COP range: 7.9 – 5.2 Performance Condition – Air 35°C / Water 26°C / Humidity 70% Heating capacity: 10.2kW Operating & Electrical Operating air temperature: –15°C to 43°C Compressor: Full stepless DC inverter Fan: Centrifugal inverter fan Power supply: 240V single phase Electrical connection: Hard wired Rated input power: 0.49 – 3.8kW Rated input current: 2.13 – 16.52A Maximum input current: 18.0A Noise Levels Sound level at 1m: 39.8 – 50.2 dB(A) Sound level at 10m: 19.5 – 29.8 dB(A) Plumbing & Dimensions Recommended water flow: 150 L/min (±20%) Water connection: 40mm Net weight: 103kg Dimensions (L × W × H): 1156 × 540 × 756 mm Installation Notes & Instructions Suitable for medium to large Australian residential pools. Installation must be completed by a licensed electrician and qualified pool heating technician. Industry-leading clearance requirements: 100mm from the rear 300mm from each side Marine-grade construction makes this unit ideal for coastal and corrosive environments. Plumbing must support the recommended flow rate to achieve optimal efficiency. Wi-Fi setup should be completed during commissioning. Installation must comply with all relevant Australian electrical and pool safety regulations.

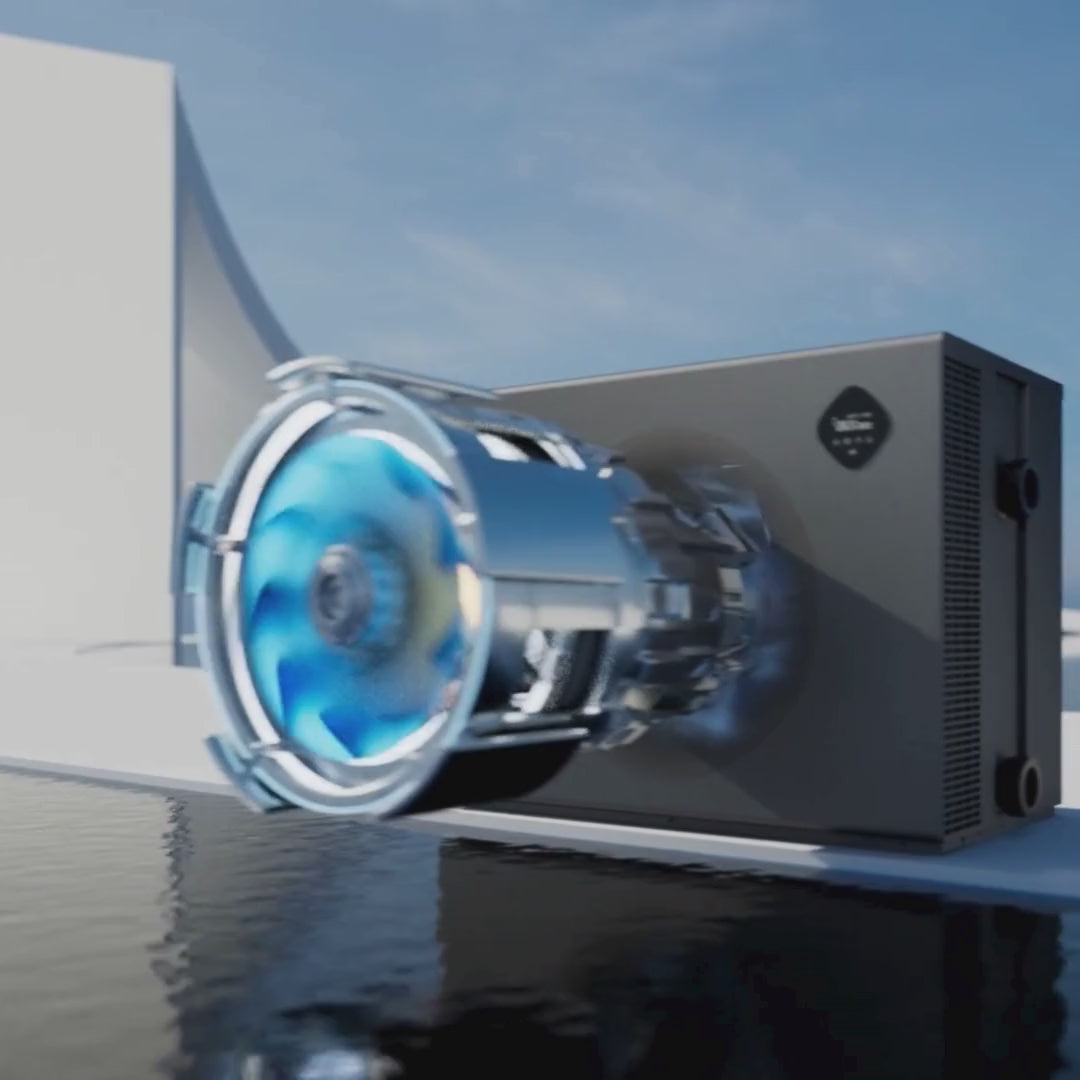

Functionality	The InverElite V3 26.9kW features a full stepless inverter compressor and industry-first centrifugal inverter fan, allowing the unit to continuously modulate output based on real-time heating or cooling demand. This results in stable water temperatures, reduced power consumption and ultra-quiet performance compared to conventional on/off heat pumps. A revolutionary airflow redirection system dramatically reduces required installation clearances, making it perfect for tight equipment areas. The system provides both heating and cooling, ensuring year-round pool comfort. User interaction is effortless thanks to the signature diamond touch screen, while integrated Wi-Fi smart control allows remote temperature adjustment, scheduling and system monitoring from your smartphone or tablet.
Brand	Madimack
Product Category	Pool Heat Pumps
