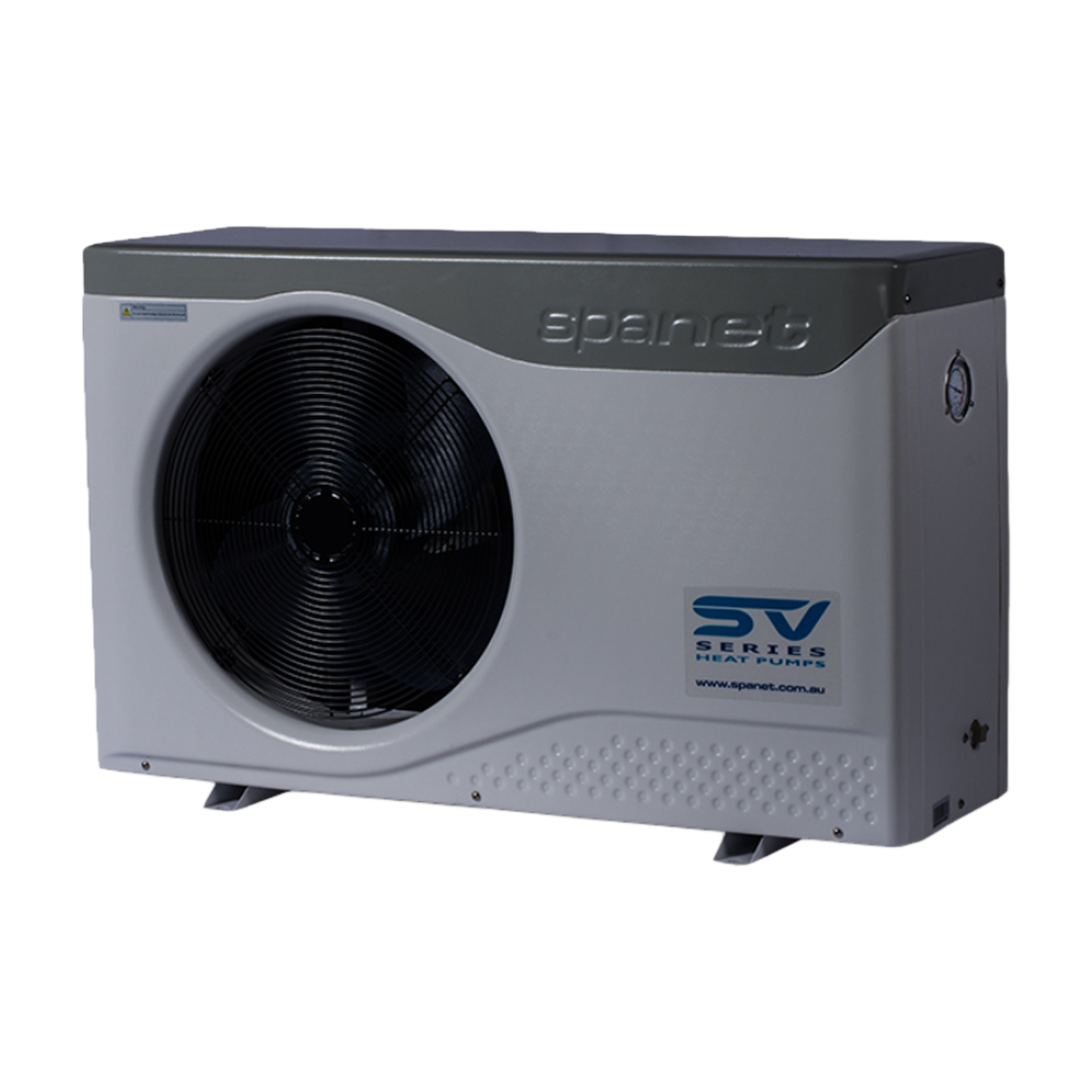

Experience exceptional energy efficiency and cost savings with an air-sourced heat pump — the smartest way to heat your spa or swim spa water. When paired with a SpaNET-equipped system, the SV Series heat pump can reduce heating expenses by up to 75%, while also giving you the option to cool your spa during warmer months.
Since 2009, the SV Series interface has set the standard for seamless spa heating technology, ensuring effortless integration with any SV Series control system. Its plug-and-play cable connection eliminates the need for extra power circuits, while automatic detection on start-up ensures the electric heater is deactivated, allowing the heat pump to take full control of heating or cooling.
Product Specifications
Power Supply: 220–240V~/1PH/50Hz
Heating Test Conditions: Ambient 24°C / Water 27°C
Heating Capacity: 8.6 kW
Heating Input: 1.65 kW
COP: 5.21
Running Current (Heating): 7.8 A
Maximum Rated Heating Current: 8.75 A
Cooling Test Conditions: Ambient 32°C / Water 27°C
Cooling Capacity: 6.0 kW
Cooling Input: 1.7 kW
EER: 3.5
Maximum Rated Cooling Current: 8.5 A
Recommended Pool Volume: Over 2500 L
Minimum Water Flow: 3.0 m³/hr
Water Temperature Range: 10°C – 41°C
Outlet Connectors: 40 mm PVC
Sound Level: 49 dB(A)
Operating Temperature Range: 0°C – 40°C
Refrigerant: R32
Protection Class: Class 1
Waterproof Rating: IPx5
Air Flow: 1700 m³/h
Fan Speed: 850 RPM
Heat Exchanger: Titanium + PVC
Cabinet Dimensions (L × W × H): 960 × 320 × 615 mm
Net Weight: 53 kg
